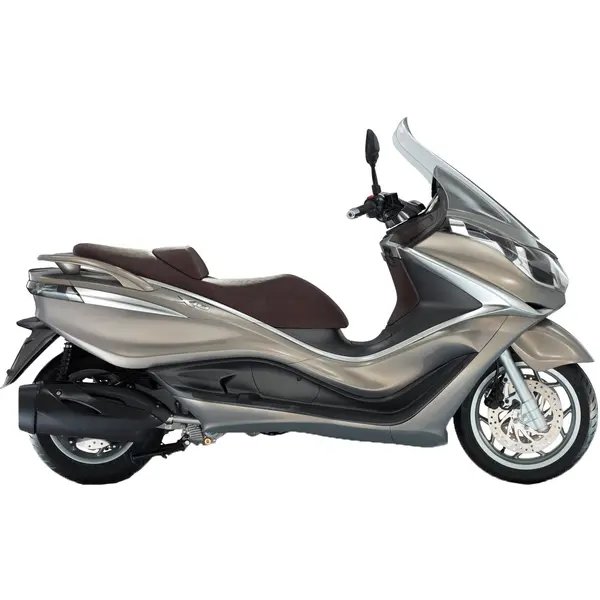

Piaggio X10 350 IE EXECUTIVE (ABS) (2012) — Specs
Identity
Manufacturer: Piaggio
Model: X10 350 IE EXECUTIVE (ABS)
Category: Scooter
Type: Scooter
Years: 2012 →
Engine
Displacement (cc): 330
Cylinders: 1
Power (hp): 33
Power (kW): 25
Torque (Nm): 35
Dimensions
Overall length: 2235 mm
Overall width: 770 mm
Overall height: 1485 mm
Wheelbase: 1535 mm
Ground clearance: 140 mm
Weight (kg): 216
Seat height (mm): 760
Tank (L): 15.5
Tires
Front tire: 120/70-15
Rear tire: 160/60-15
Front pressure (bar): 2.3
Rear pressure (bar): 2.4
Drivetrain
Transmission: CVT (automatic)
Ignition
Spark plug: NGK CR7EKB
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE15W-50, API SJ
Engine oil (with filter, L): 1.5
Oil filter: Hiflofiltro HF183
Air filter: Hiflofiltro HFA5203
Coolant (L): 1.75
Brake fluid: DOT 4
Fuel consumption
Estimated: 4.0 L/100 km
Estimated range: ~387 km on a full tank (15.5 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Valve clearance — intake cold 0.10 mm, exhaust cold 0.15 mm. Engine oil: oil grade SAE15W-50, API SJ, 1.5 L with filter change. Spark plug: NGK CR7EKB (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.75 L. Drive: CVT (automatic). Tire pressure: front 2.3 bar, rear 2.4 bar (cold). Tire size: front 120/70-15, rear 160/60-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE15W-50, API SJ, 1.5 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF183
- Premium Hiflofiltro HF183
- Premium K&N KN-183
Air filter
Spec: Hiflofiltro HFA5203
- Standard Hiflofiltro HFA5203
Spark plug
Spec: NGK CR7EKB, gap 0.7-0.8 mm
- OEM NGK CR7EKB
- Premium NGK CR7EIX
- Standard NGK CR7EKB
Front brake pads
Spec: EBC SFA353HH
- Premium EBC SFA353HH
Rear brake pads
Spec: EBC SFA353HH
- Premium EBC SFA353HH
Front tire
Spec: 120/70-15, 2.3 bar
- OEM OEM 120/70-15
Rear tire
Spec: 160/60-15, 2.4 bar
- OEM OEM 160/60-15
Battery
- Premium Yuasa YTZ10S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.75 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
- OEM Intake clearance: cold 0.10 mm
- OEM Exhaust clearance: cold 0.15 mm
Suspension
Spec: 35 mm telescopic fork
- OEM Fork: 35 mm telescopic fork
