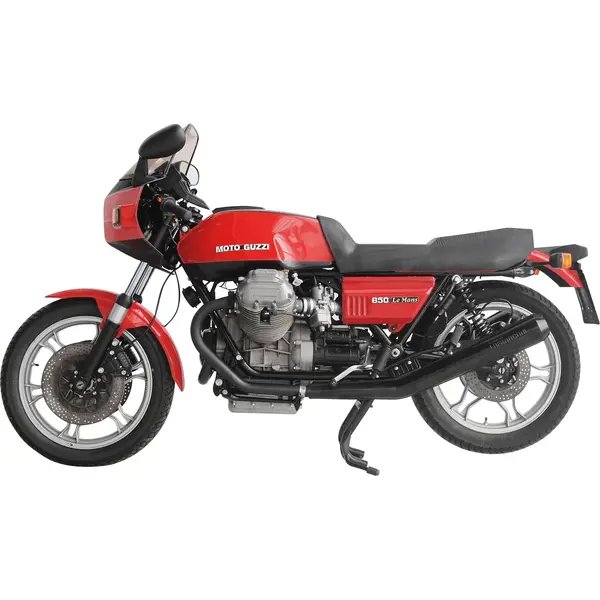

Moto Guzzi 850 LE MANS II (1979–1980) — Specs
Identity
Manufacturer: Moto Guzzi
Model: 850 LE MANS II
Category: Motorcycle
Type: Motorcycle
Years: 1979 → 1980
Engine
Displacement (cc): 844
Cylinders: 2
Power (hp): 74
Power (kW): 54
Torque (Nm): 70
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 238
Seat height (mm): 775
Tank (L): 22.5
Tires
Front tire: 100/90-18
Rear tire: 120/80-18
Front pressure (bar): 2.1
Rear pressure (bar): 2.4
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK BP6ES
Plug gap: 0.5 mm
Fluids & Filters
Engine oil: 20W-50
Engine oil (with filter, L): 3
Oil filter: Hiflofiltro HF552
Air filter: OEM air filter
Brake fluid: DOT 3
Fuel consumption
Estimated range: ~409 km on a full tank (22.5 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.22 mm, exhaust cold 0.22 mm. Engine oil: oil grade 20W-50, 3 L with filter change. Spark plug: NGK BP6ES (gap 0.5 mm). Brake fluid: DOT 3. Drive: shaft drive. Tire pressure: front 2.1 bar, rear 2.4 bar (cold). Tire size: front 100/90-18, rear 120/80-18. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 20W-50, 3.0 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF552
- Premium Hiflofiltro HF552
- Premium K&N KN-552
Air filter
Spark plug
Spec: NGK BP6ES, gap 0.5 mm
- OEM NGK BP6ES
- Premium NGK BPR6EIX
- Standard NGK BP6ES
Front brake pads
Rear brake pads
Front tire
Spec: 100/90-18, 2.1 bar
- OEM OEM 100/90-18
Rear tire
Spec: 120/80-18, 2.4 bar
- OEM OEM 120/80-18
Battery
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 3
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.22 mm
- OEM Exhaust clearance: cold 0.22 mm
Suspension
Spec: 35 mm telescopic fork / 90 ml
- OEM Fork: 35 mm telescopic fork
- OEM Fork oil grade: 90 ml
Drive chain
