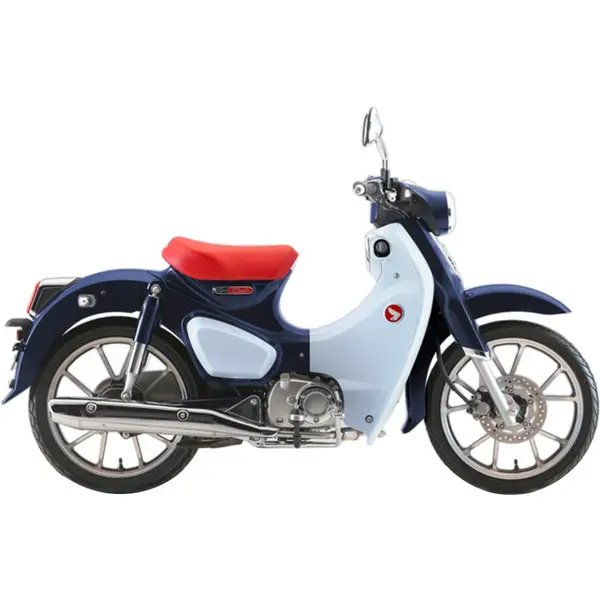

Honda SUPER CUB C125 ABS (2019–2021) — Specs
Identity
Manufacturer: Honda
Model: SUPER CUB C125 ABS
Category: Motorcycle
Type: Motorcycle
Years: 2019 → 2021
Engine
Displacement (cc): 125
Cylinders: 1
Power (hp): 9.7
Power (kW): 7.1
Torque (Nm): 10.5
Dimensions
Overall length: 1950 mm
Overall width: 720 mm
Overall height: 1110 mm
Wheelbase: 1340 mm
Ground clearance: 150 mm
Weight (kg): 109
Seat height (mm): 780
Tank (L): 3.7
Tires
Front tire: 70/90-17
Rear tire: 80/90-17
Front pressure (bar): 2
Rear pressure (bar): 2.25
Drivetrain
Drive chain: 420 chain, 106 links
Sprockets (front / rear): 14 / 36
Ignition
Spark plug: NGK CPR6EA-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (without filter, L): 1
Oil filter: Hiflofiltro HF117
Air filter: OEM air filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~123 km on a full tank (3.7 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Engine oil: oil grade SAE10W-30, API SG, 1 L without filter change. Spark plug: NGK CPR6EA-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Chain: 106 links, sprockets 14/36 teeth. Tire pressure: front 2 bar, rear 2.25 bar (cold). Tire size: front 70/90-17, rear 80/90-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-30, API SG, 1.0 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF117
- Premium Hiflofiltro HF117
- Premium K&N KN-117
Air filter
Spark plug
Spec: NGK CPR6EA-9, gap 0.8-0.9 mm
- OEM NGK CPR6EA-9
- Premium NGK CPR6EAIX-9
- Standard NGK CPR6EA-9
Front brake pads
Rear brake pads
Drive chain
Spec: 106 links | Sprockets 14/36 teeth / 106 links
Front tire
Spec: 70/90-17, 2.0 bar
- OEM OEM 70/90-17
Rear tire
Spec: 80/90-17, 2.25 bar
- OEM OEM 80/90-17
Battery
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
Suspension
Spec: 26 mm telescopic fork
- OEM Fork: 26 mm telescopic fork
