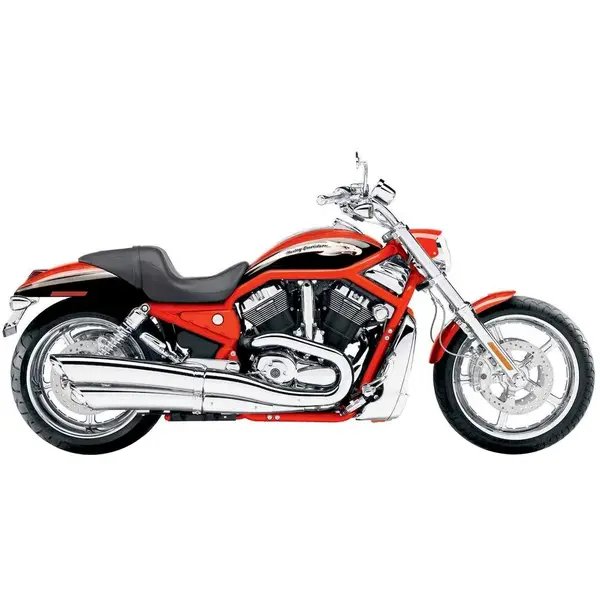

Harley-Davidson CVO SCREAMIN' EAGLE V-ROD (2005–2006) — Specs
Identity
Manufacturer: Harley-Davidson
Model: CVO SCREAMIN' EAGLE V-ROD
Category: Cruiser
Type: Motorcycle
Years: 2005 → 2006
Engine
Displacement (cc): 1250
Cylinders: 2
Power (hp): 125
Power (kW): 92
Torque (Nm): 100
Dimensions
Overall length: 2400 mm
Overall width: 875 mm
Overall height: 1100 mm
Wheelbase: 1685 mm
Ground clearance: 145 mm
Weight (kg): 298
Seat height (mm): 660
Tank (L): 14
Tires
Front tire: 120/70 R19
Rear tire: 240/40 R18
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 151 links BELT
Sprockets (front / rear): 30 / 72
Ignition
Spark plug: NGK DCPR8E
Plug gap: 0.9 mm
Fluids & Filters
Engine oil (with filter, L): 4.2
Oil filter: Hiflofiltro HF174C
Air filter: OEM air filter
Coolant (L): 2.4
Brake fluid: DOT 4
Fuel consumption
Estimated: 6.5 L/100 km
Estimated range: ~215 km on a full tank (14.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: 4.2 L with filter change. Spark plug: NGK DCPR8E (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2.4 L. Chain: 151 links BELT, sprockets 30/72 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 R19, rear 240/40 R18. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: nan, 4.2 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF174C
- Premium Hiflofiltro HF174C
- Premium K&N KN-174C
Air filter
Spark plug
Spec: NGK DCPR8E, gap 0.9 mm
- OEM NGK DCPR8E
- Premium NGK DCPR8EIX
- Standard NGK DCPR8E
Front brake pads
Spec: EBC FA194HH
- Premium EBC FA194HH
Rear brake pads
Spec: EBC FA194HH
- Premium EBC FA194HH
Front tire
Spec: 120/70 R19, 2.5 bar
- OEM OEM 120/70 R19
Rear tire
Spec: 240/40 R18, 2.9 bar
- OEM OEM 240/40 R18
Battery
- Premium Yuasa YTX14-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.40 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 49 mm telescopic fork
- OEM Fork: 49 mm telescopic fork
Drive chain
