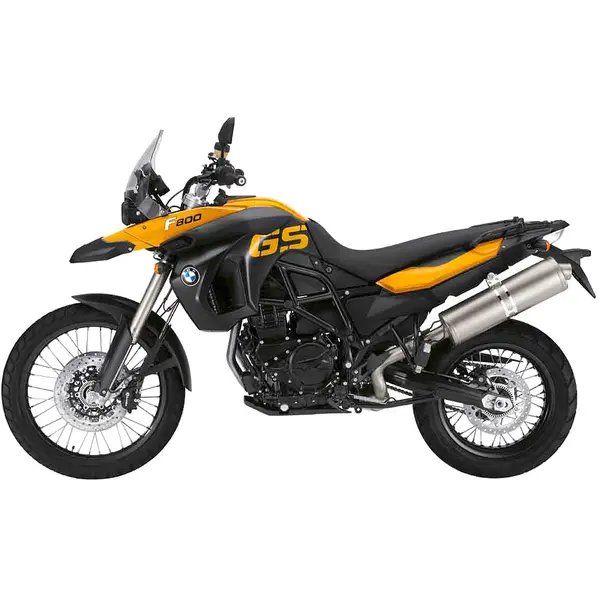

BMW F 800 GS (2008–2012) — Specs
Identity
Manufacturer: BMW
Model: F 800 GS
Category: Motorcycle
Type: Motorcycle
Years: 2008 → 2012
Engine
Displacement (cc): 798
Cylinders: 2
Power (hp): 85
Power (kW): 63
Torque (Nm): 83
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 207
Seat height (mm): 880
Tank (L): 16
Tires
Front tire: 90/90-21
Rear tire: 150/70 R17
Front pressure (bar): 2.2
Rear pressure (bar): 2.4
Drivetrain
Drive chain: 525 chain, 116 links
Sprockets (front / rear): 16 / 42
Ignition
Spark plug: NGK DCPR8E
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE15W-50, API SJ
Engine oil (with filter, L): 3
Oil filter: Hiflofiltro HF160
Air filter: Hiflofiltro HFA7913
Coolant (L): 1.3
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~333 km on a full tank (16.0 L)
Service
Battery: YTZ14S
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 20000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 20,000 km. Valve clearance — intake cold 0.18-0.26 mm, exhaust cold 0.27-0.35 mm. Engine oil: oil grade SAE15W-50, API SJ, 3 L with filter change. Spark plug: NGK DCPR8E (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.3 L. Chain: 116 links, sprockets 16/42 teeth. Tire pressure: front 2.2 bar, rear 2.4 bar (cold). Tire size: front 90/90-21, rear 150/70 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 5W-40, 3.0 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF160
- Premium Hiflofiltro HF160
- Premium K&N KN-160
Air filter
Spec: Hiflofiltro HFA7913
- Standard Hiflofiltro HFA7913
Spark plug
Spec: NGK LMAR8B-9DS, gap 0.7-0.8 mm
- OEM NGK LMAR8B-9DS
- Premium NGK LMAR8B-9DS
- Standard NGK LMAR8B-9DS
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 116 links | Sprockets 16/42 teeth / 116 links
Front sprocket
Spec: 16 teeth
Rear sprocket
Spec: 42 teeth
Front tire
Spec: 90/90-21, 2.2 bar
- OEM OEM 90/90-21
Rear tire
Spec: 150/70 R17, 2.4 bar
- OEM OEM 150/70 R17
Battery
Spec: OEM battery: Yuasa YTZ14S
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.30 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 20 000 km
- OEM Intake clearance: cold 0.18-0.26 mm
- OEM Exhaust clearance: cold 0.27-0.35 mm
Suspension
Spec: 45 mm USD fork / 765 ml SAE 7.5W
- OEM Fork: 45 mm USD fork
- OEM Fork oil grade: 765 ml SAE 7.5W
