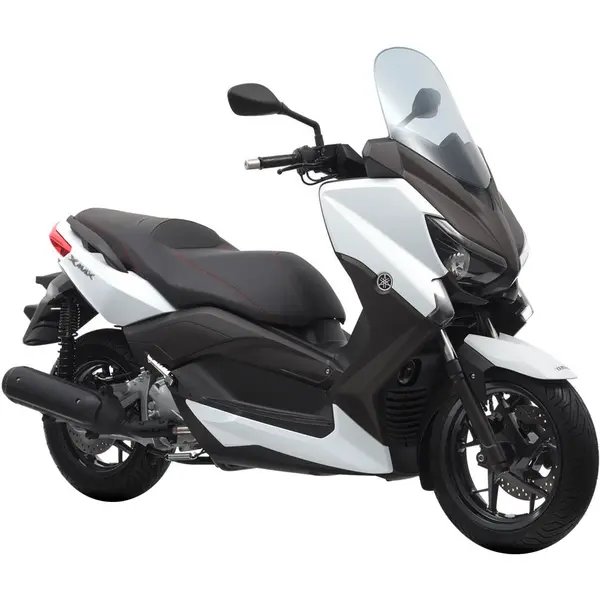

Yamaha YP 250 R X-MAX /ABS (2014–2016) — Specs
Identity
Manufacturer: Yamaha
Model: YP 250 R X-MAX /ABS
Category: Scooter
Type: Scooter
Years: 2014 → 2016
Engine
Displacement (cc): 249
Cylinders: 1
Power (hp): 20
Power (kW): 15
Torque (Nm): 21
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 180
Seat height (mm): 785
Tank (L): 13.2
Tires
Front tire: 120/70 R15
Rear tire: 140/70 R14
Front pressure (bar): 1.9
Rear pressure (bar): 2.2
Ignition
Spark plug: NGK DPR8EA-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: 10W-40, 20W-40, API SF
Engine oil (with filter, L): 1.3
Oil filter: Hiflofiltro HF140
Air filter: Hiflofiltro HFA4204
Coolant (L): 1.2
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~439 km on a full tank (13.2 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 40000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 40,000 km. Valve clearance — intake cold 0.08-0.12 mm, exhaust cold 0.16-0.20 mm. Engine oil: oil grade 10W-40, 20W-40, API SF, 1.3 L with filter change. Spark plug: NGK DPR8EA-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.2 L. Tire pressure: front 1.9 bar, rear 2.2 bar (cold). Tire size: front 120/70 R15, rear 140/70 R14. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 20W-40, API SF, 1.3 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF140
- Premium Hiflofiltro HF140
- Premium K&N KN-140
Air filter
Spec: Hiflofiltro HFA4204
- Standard Hiflofiltro HFA4204
Spark plug
Spec: NGK DPR8EA-9, gap 0.8-0.9 mm
- OEM NGK DPR8EA-9
- Premium NGK DPR8EAIX-9
- Standard NGK DPR8EA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Front tire
Spec: 120/70 R15, 1.9 bar
- OEM OEM 120/70 R15
Rear tire
Spec: 140/70 R14, 2.2 bar
- OEM OEM 140/70 R14
Battery
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.20 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 40 000 km
- OEM Intake clearance: cold 0.08-0.12 mm
- OEM Exhaust clearance: cold 0.16-0.20 mm
Suspension
Spec: telescopic fork / 128 ml SAE 10W
- OEM Fork: telescopic fork
- OEM Fork oil grade: 128 ml SAE 10W
