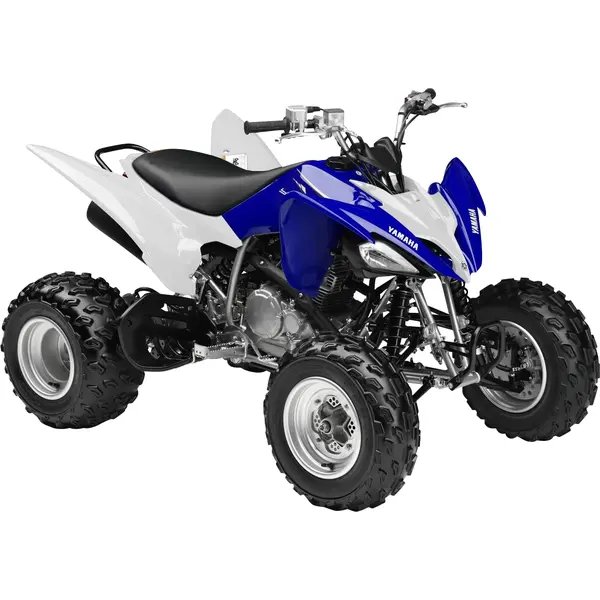

Yamaha YFM 250 R RAPTOR (2008–2013) — Specs
Identity
Manufacturer: Yamaha
Model: YFM 250 R RAPTOR
Category: ATV/Quad
Type: ATV/Quad
Years: 2008 → 2013
Engine
Displacement (cc): 249
Cylinders: 1
Power (hp): 19
Power (kW): 14
Dimensions
Overall length: 2070 mm
Overall width: 770 mm
Overall height: 1130 mm
Wheelbase: 1395 mm
Ground clearance: 155 mm
Weight (kg): 142
Tank (L): 9
Drivetrain
Drive chain: 428 chain, 92 links
Sprockets (front / rear): 14 / 38
Ignition
Spark plug: NGK DR7EA
Plug gap: 0.6-0.7 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 1.3
Engine oil (without filter, L): 1.2
Oil filter: OEM oil filter
Air filter: OEM air filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~300 km on a full tank (9.0 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.05-0.10 mm, exhaust cold 0.10-0.15 mm. Engine oil: oil grade SAE10W-40, API SG, 1.3 L with filter change, 1.2 L without filter change. Spark plug: NGK DR7EA (gap 0.6-0.7 mm). Brake fluid: DOT 4. Chain: 92 links, sprockets 14/38 teeth. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 1.3 L (with filter), 1.2 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100
- Premium Motul 5100
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T
- Standard Elf Moto 4 Tech
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Air filter
Spark plug
Spec: NGK DR7EA, gap 0.6-0.7 mm
- OEM NGK DR7EA
- Premium NGK DR7EAIX
- Standard NGK DR7EA
Front brake pads
Rear brake pads
Drive chain
Spec: 92 links | Sprockets 14/38 teeth / 92 links
- OEM OEM chain (pitch 520 (or 428 for some commuter 250s))
Front tire
Rear tire
Battery
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.05-0.10 mm
- OEM Exhaust clearance: cold 0.10-0.15 mm
