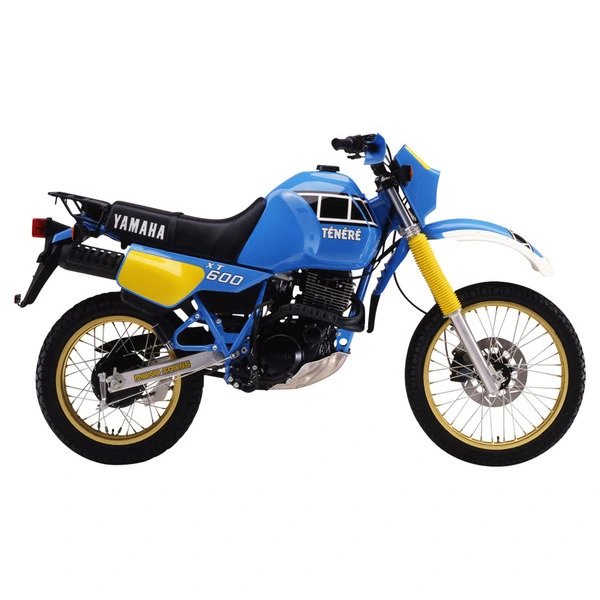

Yamaha XT 600 Z TENERE (1986–1987) — Specs
Identity
Manufacturer: Yamaha
Model: XT 600 Z TENERE
Category: Adventure
Type: Motorcycle
Years: 1986 → 1987
Engine
Displacement (cc): 595
Cylinders: 1
Power (hp): 46
Power (kW): 34
Torque (Nm): 56
Dimensions
Overall length: 2270 mm
Overall width: 920 mm
Overall height: 1430 mm
Wheelbase: 1545 mm
Ground clearance: 220 mm
Weight (kg): 179
Seat height (mm): 885
Tank (L): 23
Tires
Front tire: 90/90-21
Rear tire: 130/80-17
Front pressure (bar): 1.5
Rear pressure (bar): 2.2
Drivetrain
Drive chain: 520 chain, 104 links
Sprockets (front / rear): 15 / 40
Ignition
Spark plug: NGK DPR7EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE20W-40, API SE
Engine oil (with filter, L): 2
Engine oil (without filter, L): 1.9
Oil filter: Hiflofiltro HF142
Air filter: Hiflofiltro HFA4602
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~511 km on a full tank (23.0 L)
Service
Battery: YTX9-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.07-0.12 mm, exhaust cold 0.12-0.17 mm. Engine oil: oil grade SAE20W-40, API SE, 2 L with filter change, 1.9 L without filter change. Spark plug: NGK DPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Chain: 104 links, sprockets 15/40 teeth. Tire pressure: front 1.5 bar, rear 2.2 bar (cold). Tire size: front 90/90-21, rear 130/80-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE20W-40, API SE, 2.0 L (with filter), 1.9 L (without filter)
- OEM OEM recommended engine oil (SAE 20W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF142
- Premium Hiflofiltro HF142
- Premium K&N KN-142
Air filter
Spec: Hiflofiltro HFA4602
- Standard Hiflofiltro HFA4602
Spark plug
Spec: NGK DPR7EA-9, gap 0.9 mm
- OEM NGK DPR7EA-9
- Premium NGK DPR7EIX-9
- Standard NGK DPR7EA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA181HH)
- Premium EBC FA181HH
- Standard EBC FA181 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Drive chain
Spec: 104 links | Sprockets 15/40 teeth / 104 links
Front tire
Spec: 90/90-21, 1.5 bar
- OEM OEM 90/90-21
Rear tire
Spec: 130/80-17, 2.2 bar
- OEM OEM 130/80-17
Battery
Spec: OEM battery: Yuasa YTX9-BS
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.07-0.12 mm
- OEM Exhaust clearance: cold 0.12-0.17 mm
Suspension
Spec: 40 mm telescopic fork / 537 ml SAE 10W
- OEM Fork: 40 mm telescopic fork
- OEM Fork oil grade: 537 ml SAE 10W
