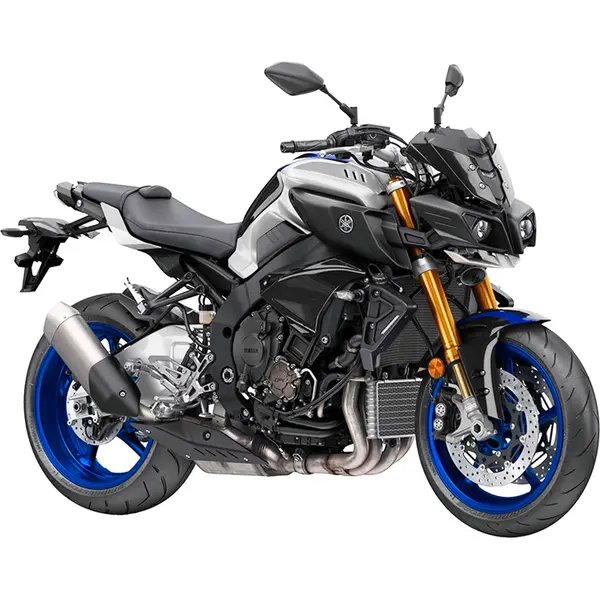

Yamaha MT-10 SP (EURO 4) (2017–2021) — Specs
Identity
Manufacturer: Yamaha
Model: MT-10 SP (EURO 4)
Category: Naked
Type: Motorcycle
Years: 2017 → 2021
Engine
Displacement (cc): 998
Cylinders: 4
Power (hp): 160
Power (kW): 118
Torque (Nm): 112
Dimensions
Overall length: 2090 mm
Overall width: 790 mm
Overall height: 1085 mm
Wheelbase: 1430 mm
Ground clearance: 145 mm
Weight (kg): 210
Seat height (mm): 825
Tank (L): 17
Tires
Front tire: 120/70 ZR17
Rear tire: 190/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 525 chain
Ignition
Spark plug: NGK LMAR9E-J
Plug gap: 0.6-0.7 mm
Fluids & Filters
Engine oil: 10W-40, 15W-50, API SG
Engine oil (with filter, L): 4.1
Engine oil (without filter, L): 3.9
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA4924
Coolant (L): 2.5
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~309 km on a full tank (17.0 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 42000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 42,000 km. Engine oil: oil grade 10W-40, 15W-50, API SG, 4.1 L with filter change, 3.9 L without filter change. Spark plug: NGK LMAR9E-J (gap 0.6-0.7 mm). Brake fluid: DOT 4. Coolant capacity: 2.5 L. Chain: chain. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 190/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 15W-50, API SG, 4.1 L (with filter), 3.9 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA4924
- Standard Hiflofiltro HFA4924
Spark plug
Spec: NGK LMAR9E-J, gap 0.6-0.7 mm
- OEM NGK LMAR9E
- Premium NGK LMAR9EIX
- Standard NGK LMAR9E
Front brake pads
Rear brake pads
Drive chain
Spec: chain
Front sprocket
Rear sprocket
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 190/55 ZR17, 2.9 bar
- OEM OEM 190/55 ZR17
Battery
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.50 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 42 000 km
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
