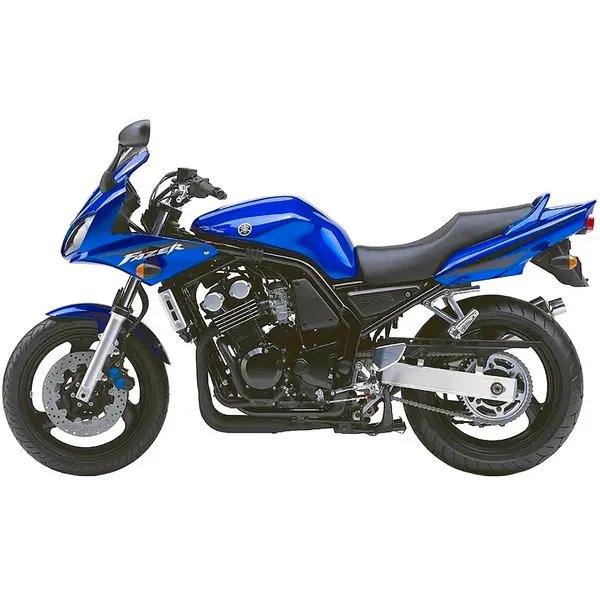

Yamaha FZS 600 FAZER (2002–2004) — Specs
Identity
Manufacturer: Yamaha
Model: FZS 600 FAZER
Category: Motorcycle
Type: Motorcycle
Years: 2002 → 2004
Engine
Displacement (cc): 599
Cylinders: 4
Power (hp): 95
Power (kW): 70
Torque (Nm): 60
Dimensions
Overall length: 2095 mm
Overall width: 760 mm
Overall height: 1095 mm
Wheelbase: 1440 mm
Ground clearance: 145 mm
Weight (kg): 217
Seat height (mm): 790
Tank (L): 22
Tires
Front tire: 110/70-17
Rear tire: 160/60-17
Front pressure (bar): 2.25
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 520 chain, 110 links
Sprockets (front / rear): 15 / 48
Ignition
Spark plug: NGK CR8EK
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE
Engine oil (with filter, L): 2.7
Engine oil (without filter, L): 2.5
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA4607
Coolant (L): 1.95
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.0 L/100 km
Estimated range: ~440 km on a full tank (22.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX12-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.11-0.20 mm, exhaust cold 0.21-0.30 mm. Engine oil: oil grade SAE10W-40, API SE, 2.7 L with filter change, 2.5 L without filter change. Spark plug: NGK CR8EK (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.95 L. Chain: 110 links, sprockets 15/48 teeth. Tire pressure: front 2.25 bar, rear 2.5 bar (cold). Tire size: front 110/70-17, rear 160/60-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE, 2.7 L (with filter), 2.5 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA4607
- Standard Hiflofiltro HFA4607
Spark plug
Spec: NGK CR8EK, gap 0.7-0.8 mm
- OEM NGK CR8EK
- Premium NGK CR9E
- Standard NGK CR8EK
Front brake pads
Spec: OEM front pad (EBC equivalent: FA252HH)
- Premium EBC FA252HH
- Standard EBC FA252 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 110 links | Sprockets 15/48 teeth / 110 links
Front tire
Spec: 110/70-17, 2.25 bar
- OEM OEM 110/70-17
Rear tire
Spec: 160/60-17, 2.5 bar
- OEM OEM 160/60-17
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTZ10S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.95 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.11-0.20 mm
- OEM Exhaust clearance: cold 0.21-0.30 mm
Suspension
Spec: 41 mm telescopic fork / 465 ml SAE 10W
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 465 ml SAE 10W
