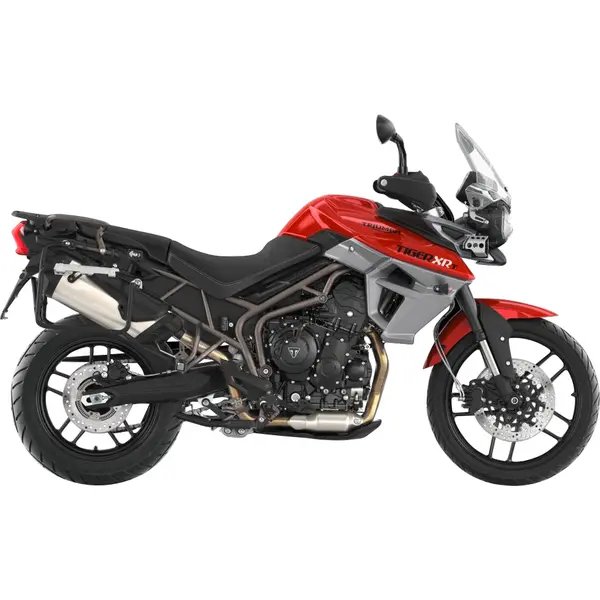

Triumph TIGER 800 XR/XRX/XRT (2015–2016) — Specs
Identity
Manufacturer: Triumph
Model: TIGER 800 XR/XRX/XRT
Category: Adventure
Type: Motorcycle
Years: 2015 → 2016
Engine
Displacement (cc): 799
Cylinders: 3
Power (hp): 95
Power (kW): 70
Torque (Nm): 79
Dimensions
Overall length: 2280 mm
Overall width: 935 mm
Overall height: 1465 mm
Wheelbase: 1551 mm
Ground clearance: 215 mm
Weight (kg): 213
Seat height (mm): 810
Tank (L): 19
Tires
Front tire: 90/90-21
Rear tire: 150/70 R17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 525 chain, 124 links
Ignition
Spark plug: NGK CR9EK
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: 10W-40, 10W-50, API SH
Engine oil (with filter, L): 3.6
Engine oil (without filter, L): 3.4
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA6501
Coolant (L): 2.7
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.5 L/100 km
Estimated range: ~345 km on a full tank (19.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX12-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade 10W-40, 10W-50, API SH, 3.6 L with filter change, 3.4 L without filter change. Spark plug: NGK CR9EK (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 2.7 L. Chain: 124 links. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 90/90-21, rear 150/70 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 10W-50, API SH, 3.6 L (with filter), 3.4 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA6501
- Standard Hiflofiltro HFA6501
Spark plug
Spec: NGK CR9EK, gap 0.7 mm
- OEM NGK CR9EK
- Premium NGK CR9EKIX
- Standard NGK CR9EK
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Drive chain
Spec: 124 links | 124 links
Front tire
Spec: 90/90-21, 2.5 bar
- OEM OEM 90/90-21
Rear tire
Spec: 150/70 R17, 2.9 bar
- OEM OEM 150/70 R17
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTZ14S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.70 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
