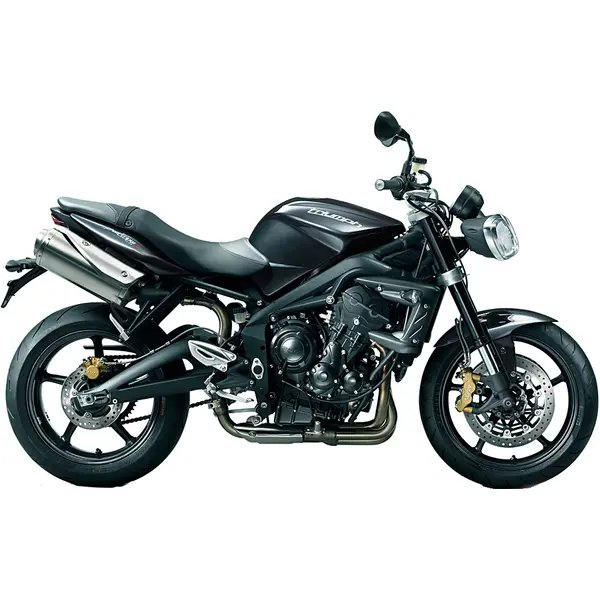

Triumph STREET TRIPLE 675 R (2012) — Specs
Identity
Manufacturer: Triumph
Model: STREET TRIPLE 675 R
Category: Naked
Type: Motorcycle
Years: 2012 → 2012
Engine
Displacement (cc): 675
Cylinders: 3
Power (hp): 106
Power (kW): 78
Torque (Nm): 80
Dimensions
Overall length: 2090 mm
Overall width: 790 mm
Overall height: 1085 mm
Wheelbase: 1430 mm
Ground clearance: 145 mm
Weight (kg): 195
Seat height (mm): 805
Tank (L): 17.4
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Drivetrain
Drive chain: 520 chain
Ignition
Spark plug: NGK CR9EK
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: 10W-40, 10W-50, API SH
Engine oil (with filter, L): 3.1
Engine oil (without filter, L): 2.9
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA6510
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~362 km on a full tank (17.4 L)
Service
Battery: YTX9-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade 10W-40, 10W-50, API SH, 3.1 L with filter change, 2.9 L without filter change. Spark plug: NGK CR9EK (gap 0.7 mm). Brake fluid: DOT 4. Chain: chain. Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 10W-50, API SH, 3.1 L (with filter), 2.9 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA6510
- Standard Hiflofiltro HFA6510
Spark plug
Spec: NGK CR9EK, gap 0.7 mm
- OEM NGK CR9EK
- Premium NGK CR9EKIX
- Standard NGK CR9EK
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Drive chain
Spec: chain
Front tire
Spec: 120/70 ZR17
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17
- OEM OEM rear: 180/55 ZR17
Battery
Spec: OEM battery: Yuasa YTX9-BS
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 41 mm USD fork
- OEM Fork: 41 mm USD fork
