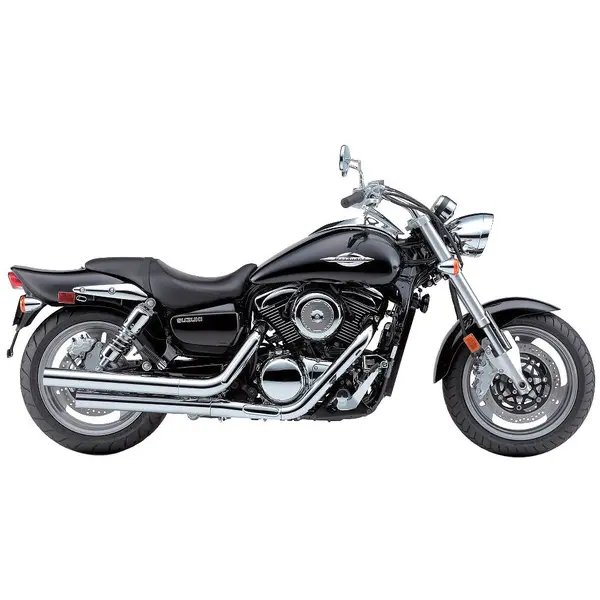

Suzuki VZ 1600 MARAUDER (2004) — Specs
Identity
Manufacturer: Suzuki
Model: VZ 1600 MARAUDER
Category: Motorcycle
Type: Motorcycle
Years: 2004 → 2004
Engine
Displacement (cc): 1552
Cylinders: 2
Power (hp): 73
Power (kW): 54
Torque (Nm): 9
Dimensions
Overall length: 2380 mm
Overall width: 920 mm
Overall height: 1340 mm
Wheelbase: 1580 mm
Ground clearance: 140 mm
Weight (kg): 317
Seat height (mm): 700
Tank (L): 17
Tires
Front tire: 2.75-18
Rear tire: 130/90-15
Front pressure (bar): 2.5
Rear pressure (bar): 2.5
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK DPR6EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE
Engine oil (with filter, L): 3.1
Engine oil (without filter, L): 2.9
Oil filter: OEM oil filter
Air filter: OEM air filter
Coolant (L): 2.3
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~283 km on a full tank (17.0 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE10W-40, API SE, 3.1 L with filter change, 2.9 L without filter change. Spark plug: NGK DPR6EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2.3 L. Drive: shaft drive. Tire pressure: front 2.5 bar, rear 2.5 bar (cold). Tire size: front 2.75-18, rear 130/90-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE, 3.1 L (with filter), 2.9 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Air filter
Spark plug
Spec: NGK DPR6EA-9, gap 0.9 mm
- OEM NGK DPR6EA-9
- Premium NGK DPR6EAIX-9
- Standard NGK DPR6EA-9
Front brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Rear brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Front tire
Spec: 2.75-18, 2.5 bar
- OEM OEM 2.75-18
Rear tire
Spec: 130/90-15, 2.5 bar
- OEM OEM 130/90-15
Battery
- Premium Yuasa YTX20HL-BS (typical 1300cc+ cruiser/tourer)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.30 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Hydraulic lifters — no manual adjustment needed
Suspension
Spec: 43 mm USD fork / R:507/L:601ML10W20
- OEM Fork: 43 mm USD fork
- OEM Fork oil grade: R:507/L:601ML10W20
Drive chain
