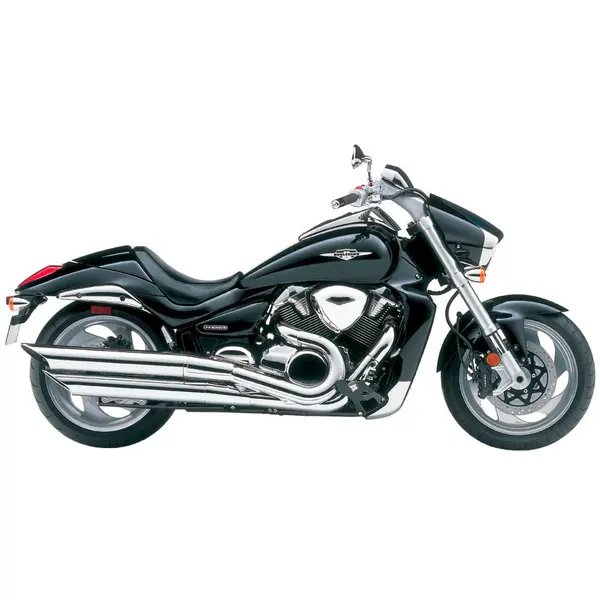

Suzuki M 1800 R/R2 INTRUDER (VZR 1800) (2006–2017) — Specs

Identity

Manufacturer: Suzuki

Model: M 1800 R/R2 INTRUDER (VZR 1800)

Category: Motorcycle

Type: Motorcycle

Years: 2006 → 2017

Engine

Displacement (cc): 1783

Cylinders: 2

Power (hp): 125

Power (kW): 92

Torque (Nm): 160

Dimensions

Overall length: 2475 mm

Overall width: 1010 mm

Overall height: 1140 mm

Wheelbase: 1700 mm

Ground clearance: 130 mm

Weight (kg): 347

Seat height (mm): 705

Tank (L): 19.5

Tires

Front tire: 130/90 R16

Rear tire: 180/65 R16

Front pressure (bar): 2.5

Rear pressure (bar): 2.9

Drivetrain

Final drive: Shaft drive

Ignition

Spark plug: NGK CR8EK

Plug gap: 0.7 mm

Fluids & Filters

Engine oil: SAE10W-40, API SF

Engine oil (with filter, L): 3.6

Engine oil (without filter, L): 3.4

Oil filter: Hiflofiltro HF136

Air filter: Hiflofiltro HFA3103

Coolant (L): 2.7

Brake fluid: DOT 4

Fuel consumption

Estimated: 6.5 L/100 km

Estimated range: ~300 km on a full tank (19.5 L)

Note: real-world ±15-30% depending on riding style

Service

Battery: YTX20HL-BS

Service interval (km): 10000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.09-0.16 mm, exhaust cold 0.20-0.30 mm. Engine oil: oil grade SAE10W-40, API SF, 3.6 L with filter change, 3.4 L without filter change. Spark plug: NGK CR8EK (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 2.7 L. Drive: shaft drive. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 130/90 R16, rear 180/65 R16. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE10W-40, API SF, 3.6 L (with filter), 3.4 L (without filter)

OEM OEM recommended engine oil (SAE 10W-40)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Spec: Hiflofiltro HF136

Premium Hiflofiltro HF136
Premium K&N KN-136

Air filter

Spec: Hiflofiltro HFA3103

Standard Hiflofiltro HFA3103

Spark plug

Spec: NGK CR8EK, gap 0.7 mm

OEM NGK CR8EK
Premium NGK CR8EIX
Standard NGK CR8EK

Front brake pads

Spec: EBC FA379HH

Premium EBC FA379HH

Rear brake pads

Spec: EBC FA379HH

Premium EBC FA379HH

Front tire

Spec: 130/90 R16, 2.5 bar

OEM OEM 130/90 R16

Rear tire

Spec: 180/65 R16, 2.9 bar

OEM OEM 180/65 R16

Battery

Premium Yuasa YTX20HL-BS

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Spec: 2.70 L coolant capacity

Service interval

Spec: 10 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: cold 0.09-0.16 mm
OEM Exhaust clearance: cold 0.20-0.30 mm

Suspension

Spec: 46 mm USD fork / 684 ml SAE 10W

OEM Fork: 46 mm USD fork
OEM Fork oil grade: 684 ml SAE 10W

Drive chain
