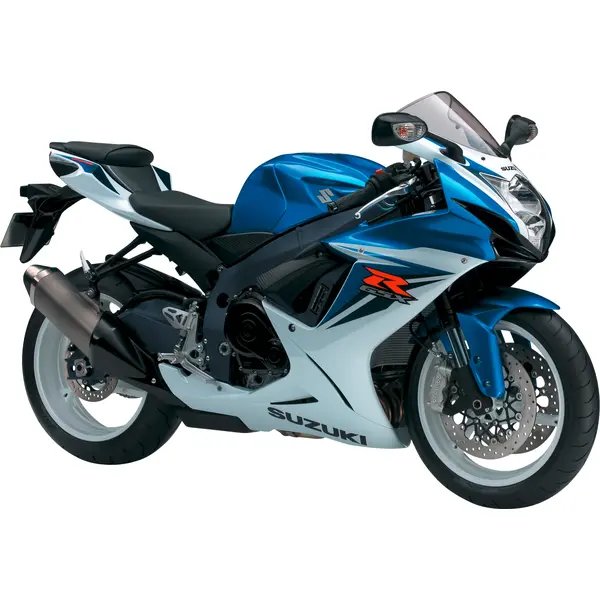

Suzuki GSX-R 600 L1/L2/L3/L4/L5/L6/L7 (2011–2017) — Specs
Identity
Manufacturer: Suzuki
Model: GSX-R 600 L1/L2/L3/L4/L5/L6/L7
Category: Sport
Type: Motorcycle
Years: 2011 → 2017
Engine
Displacement (cc): 599
Cylinders: 4
Power (hp): 125
Power (kW): 92
Torque (Nm): 70
Dimensions
Overall length: 2030 mm
Overall width: 710 mm
Overall height: 1130 mm
Wheelbase: 1390 mm
Ground clearance: 130 mm
Weight (kg): 190
Seat height (mm): 810
Tank (L): 17
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 520 chain, 114 links
Sprockets (front / rear): 16 / 43
Ignition
Spark plug: NGK CR9EIA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SF
Engine oil (with filter, L): 2.5
Engine oil (without filter, L): 2.2
Oil filter: Hiflofiltro HF973
Air filter: Hiflofiltro HFA3101
Coolant (L): 2.65
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.8 L/100 km
Estimated range: ~293 km on a full tank (17.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX9-BS
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake 0.08-0.18 mm cold, exhaust 0.18-0.28 mm cold. Engine oil: oil grade SAE10W-40, API SF, 2.5 L with filter change, 2.2 L without filter change. Spark plug: NGK CR9EIA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2.65 L. Chain: 114 links, sprockets 16/43 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SF, 2.5 L (with filter), 2.2 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF973
- Premium Hiflofiltro HF973
- Premium K&N KN-973
Air filter
Spec: Hiflofiltro HFA3101
- Standard Hiflofiltro HFA3101
Spark plug
Spec: NGK CR9EIA-9, gap 0.9 mm
- OEM NGK CR9EIA-9
- Premium NGK CR9EIA-9
- Standard NGK CR9EIA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA379HH)
- Premium EBC FA379HH
- Standard EBC FA379 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Drive chain
Spec: 114 links | Sprockets 16/43 teeth / 114 links
Front sprocket
Spec: 16 teeth
Rear sprocket
Spec: 43 teeth
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
Spec: OEM battery: Yuasa YTX9-BS
- Premium Yuasa YTZ7S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.65 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: 0.08-0.18 mm cold
- OEM Exhaust clearance: 0.18-0.28 mm cold
Suspension
Spec: 41 mm USD fork / L1:420ML/L2-:487ML
- OEM Fork: 41 mm USD fork
- OEM Fork oil grade: L1:420ML/L2-:487ML
