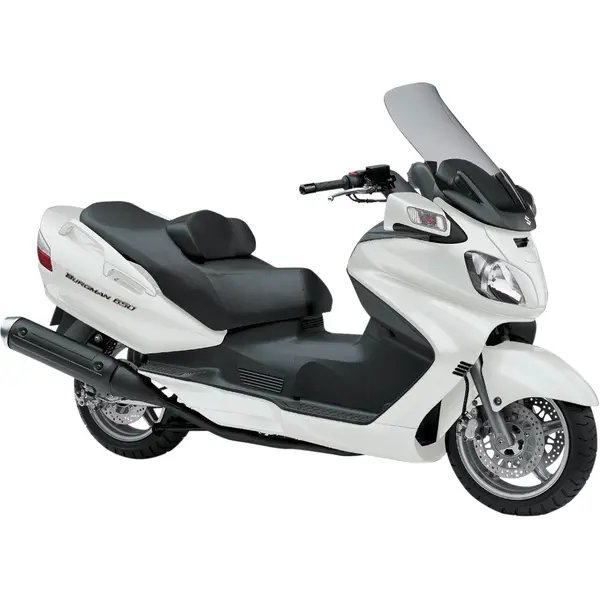

Suzuki AN 650 BURGMAN (2002–2003) — Specs

Identity

Manufacturer: Suzuki

Model: AN 650 BURGMAN

Category: Scooter

Type: Scooter

Years: 2002 → 2003

Engine

Displacement (cc): 638

Cylinders: 2

Power (hp): 55

Power (kW): 41

Torque (Nm): 62

Dimensions

Overall length: 2275 mm

Overall width: 760 mm

Overall height: 1490 mm

Wheelbase: 1595 mm

Ground clearance: 110 mm

Weight (kg): 270

Seat height (mm): 750

Tank (L): 15

Tires

Front tire: 120/70 R15

Rear tire: 160/60 R14

Front pressure (bar): 2.25

Rear pressure (bar): 2.5

Drivetrain

Transmission: CVT (automatic)

Ignition

Spark plug: NGK CR8E

Plug gap: 0.7 mm

Fluids & Filters

Engine oil: SAE10W-40, API SF

Engine oil (with filter, L): 2.9

Engine oil (without filter, L): 2.6

Oil filter: Hiflofiltro HF975

Air filter: OEM air filter

Coolant (L): 1.3

Brake fluid: DOT 4

Fuel consumption

Estimated: 4.5 L/100 km

Estimated range: ~333 km on a full tank (15.0 L)

Note: real-world ±15-30% depending on riding style

Service

Battery: OEM battery specification

Service interval (km): 12000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake 0.10-0.20MM (cold), exhaust 0.20-0.30MM (cold). Engine oil: oil grade SAE10W-40, API SF, 2.9 L with filter change, 2.6 L without filter change. Spark plug: NGK CR8E (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 1.3 L. Drive: CVT automatic. Tire pressure: front 2.25 bar, rear 2.5 bar (cold). Tire size: front 120/70 R15, rear 160/60 R14. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE10W-40, API SF, 2.9 L (with filter), 2.6 L (without filter)

OEM OEM recommended engine oil (SAE 10W-40)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Spec: Hiflofiltro HF975

Premium Hiflofiltro HF975
Premium K&N KN-975

Air filter

Spark plug

Spec: NGK CR8E, gap 0.7 mm

OEM NGK CR8E
Premium NGK CR8EIX
Standard NGK CR8E

Front brake pads

Spec: EBC SFA142HH

Premium EBC SFA142HH

Rear brake pads

Spec: EBC SFA142HH

Premium EBC SFA142HH

Front tire

Spec: 120/70 R15, 2.25 bar

OEM OEM 120/70 R15

Rear tire

Spec: 160/60 R14, 2.5 bar

OEM OEM 160/60 R14

Battery

Premium Yuasa YTZ12S

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Spec: 1.30 L coolant capacity

Service interval

Spec: 12 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: 0.10-0.20MM (cold)
OEM Exhaust clearance: 0.20-0.30MM (cold)

Suspension

Spec: 41 mm telescopic fork / 482 ml SAE 5W-20

OEM Fork: 41 mm telescopic fork
OEM Fork oil grade: 482 ml SAE 5W-20
