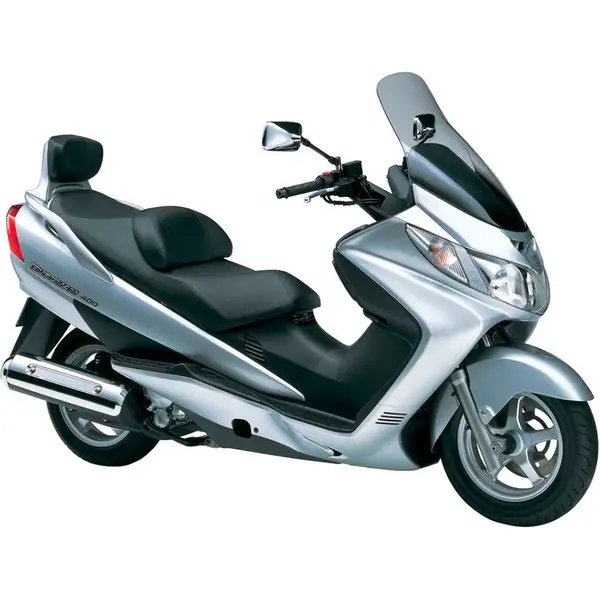

Suzuki AN 400 BURGMAN (2003–2005) — Specs
Identity
Manufacturer: Suzuki
Model: AN 400 BURGMAN
Category: Scooter
Type: Scooter
Years: 2003 → 2005
Engine
Displacement (cc): 385
Cylinders: 1
Power (hp): 33
Power (kW): 24
Torque (Nm): 36
Dimensions
Overall length: 2275 mm
Overall width: 760 mm
Overall height: 1490 mm
Wheelbase: 1595 mm
Ground clearance: 110 mm
Weight (kg): 202
Seat height (mm): 695
Tank (L): 13
Tires
Front tire: 120/70 R15
Rear tire: 150/70 R14
Front pressure (bar): 1.75
Rear pressure (bar): 2
Drivetrain
Transmission: CVT
Ignition
Spark plug: NGK CR7E
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: SAE10W-40, API SF
Engine oil (with filter, L): 2
Engine oil (without filter, L): 1.9
Oil filter: Hiflofiltro HF132
Air filter: Hiflofiltro HFA3401
Coolant (L): 1.3
Brake fluid: DOT 4
Fuel consumption
Estimated: 4.5 L/100 km
Estimated range: ~288 km on a full tank (13.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: OEM battery specification
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.08-0.13 mm, exhaust cold 0.17-0.22 mm. Engine oil: oil grade SAE10W-40, API SF, 2 L with filter change, 1.9 L without filter change. Spark plug: NGK CR7E (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 1.3 L. Drive: CVT. Tire pressure: front 1.75 bar, rear 2 bar (cold). Tire size: front 120/70 R15, rear 150/70 R14. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SF, 2.0 L (with filter), 1.9 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF132
- Premium Hiflofiltro HF132
- Premium K&N KN-132
Air filter
Spec: Hiflofiltro HFA3401
- Standard Hiflofiltro HFA3401
Spark plug
Spec: NGK CR7E, gap 0.7 mm
- OEM NGK CR7E
- Premium NGK CR7EIX
- Standard NGK CR7E
Front brake pads
Spec: EBC SFA283/4HH
- Premium EBC SFA283/4HH
Rear brake pads
Spec: EBC SFA283/4HH
- Premium EBC SFA283/4HH
Front tire
Spec: 120/70 R15, 1.75 bar
- OEM OEM 120/70 R15
Rear tire
Spec: 150/70 R14, 2.0 bar
- OEM OEM 150/70 R14
Battery
- Premium Yuasa YTZ12S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.30 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.08-0.13 mm
- OEM Exhaust clearance: cold 0.17-0.22 mm
Suspension
Spec: 41 mm telescopic fork / 284 ml SAE 5W-20
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 284 ml SAE 5W-20
