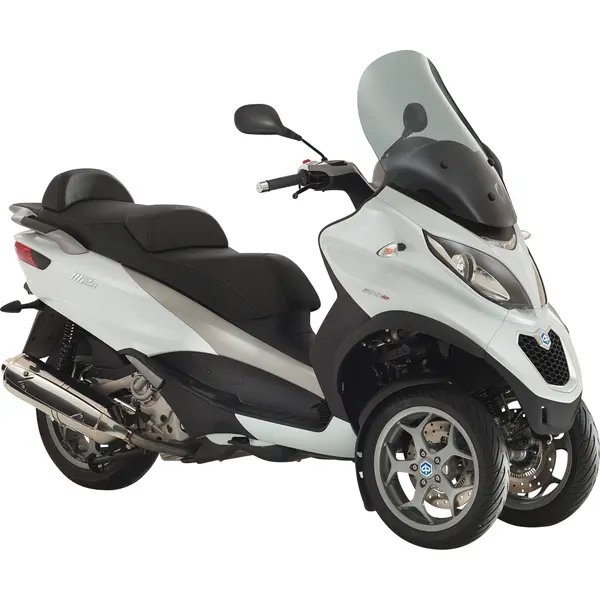

Piaggio MP3 500 I.E. BUSINESS/SPORT (EURO 4) (2017–2018) — Specs
Identity
Manufacturer: Piaggio
Model: MP3 500 I.E. BUSINESS/SPORT (EURO 4)
Category: 3-wheeler
Type: 3-wheeler
Years: 2017 → 2018
Engine
Displacement (cc): 493
Cylinders: 1
Power (hp): 39
Power (kW): 28
Torque (Nm): 47
Dimensions
Overall length: 2160 mm
Overall width: 800 mm
Overall height: 1490 mm
Wheelbase: 1545 mm
Ground clearance: 145 mm
Weight (kg): 270
Seat height (mm): 790
Tank (L): 12
Tires
Front tire: 110/70 R13
Rear tire: 140/70 R14
Ignition
Spark plug: NGK CR7EKB
Fluids & Filters
Engine oil: SAE5W-40, API SL
Oil filter: Hiflofiltro HF183
Air filter: Hiflofiltro HFA5118
Coolant (L): 1.8
Brake fluid: DOT 4
Fuel consumption
Estimated: 4.0 L/100 km
Estimated range: ~300 km on a full tank (12.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX14-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 20000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 20,000 km. Engine oil: oil grade SAE5W-40, API SL. Spark plug: NGK CR7EKB. Brake fluid: DOT 4. Coolant capacity: 1.8 L. Tire size: front 110/70 R13, rear 140/70 R14. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE5W-40, API SL
- OEM OEM recommended engine oil (SAE 5W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF183
- Premium Hiflofiltro HF183
- Premium K&N KN-183
Air filter
Spec: Hiflofiltro HFA5118
- Standard Hiflofiltro HFA5118
Spark plug
Spec: NGK CR7EKB
- OEM NGK CR7EKB
- Premium NGK CR7EKBIX
- Standard NGK CR7EKB
Front brake pads
Spec: OEM front pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: SFA193HH)
- Premium EBC SFA193HH
- Standard EBC SFA193 (organic)
Front tire
Spec: 110/70 R13
- OEM OEM 110/70 R13
Rear tire
Spec: 140/70 R14
- OEM OEM 140/70 R14
Battery
Spec: OEM battery: Yuasa YTX14-BS
- Premium Yuasa YTZ10S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.80 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 20 000 km
Drive chain
