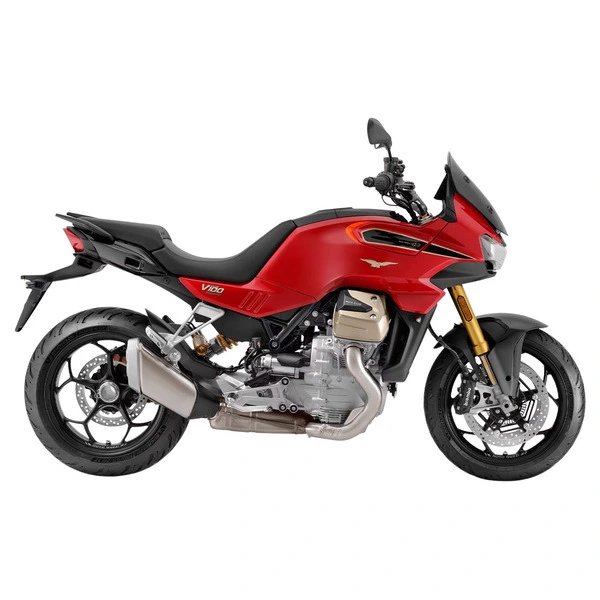

Moto Guzzi V100 Mandello Wind Tunnel (2025) — Specs
Identity
Manufacturer: Moto Guzzi
Model: V100 Mandello Wind Tunnel
Category: Motorcycle
Type: Motorcycle
Years: 2025 →
Engine
Displacement (cc): 1042
Cylinders: 2
Power (hp): 115
Power (kW): 85
Torque (Nm): 105
Dimensions
Overall length: 2180 mm
Overall width: 790 mm
Overall height: 1185 mm
Wheelbase: 1475 mm
Ground clearance: 175 mm
Weight (kg): 233
Seat height (mm): 815
Tank (L): 17
Tires
Front tire: 120/70 ZR17
Rear tire: 190/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.8
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK LMAR8EI-7
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE10W-50, API SL
Engine oil (with filter, L): 4.9
Oil filter: Hiflofiltro HF564
Air filter: Hiflofiltro HFA7102
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.5 L/100 km
Estimated range: ~309 km on a full tank (17.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX12-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.15 mm, exhaust cold 0.30-0.35 mm. Engine oil: oil grade SAE10W-50, API SL, 4.9 L with filter change. Spark plug: NGK LMAR8EI-7 (gap 0.8 mm). Brake fluid: DOT 4. Drive: shaft drive. Tire pressure: front 2.5 bar, rear 2.8 bar (cold). Tire size: front 120/70 ZR17, rear 190/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-50, API SL, 4.9 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF564
- Premium Hiflofiltro HF564
- Premium K&N KN-564
Air filter
Spec: Hiflofiltro HFA7102
- Standard Hiflofiltro HFA7102
Spark plug
Spec: NGK LMAR8EI-7, gap 0.8 mm
- OEM NGK LMAR8EI-7
- Premium NGK LMAR8EIIX-7
- Standard NGK LMAR8EI-7
Front brake pads
Spec: OEM front pad (EBC equivalent: FA294HH)
- Premium EBC FA294HH
- Standard EBC FA294 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 190/55 ZR17, 2.8 bar
- OEM OEM 190/55 ZR17
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTZ14S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.15 mm
- OEM Exhaust clearance: cold 0.30-0.35 mm
Suspension
Spec: 41 mm USD fork / SAE 7.5 W
- OEM Fork: 41 mm USD fork
- OEM Fork oil grade: SAE 7.5 W
Drive chain
