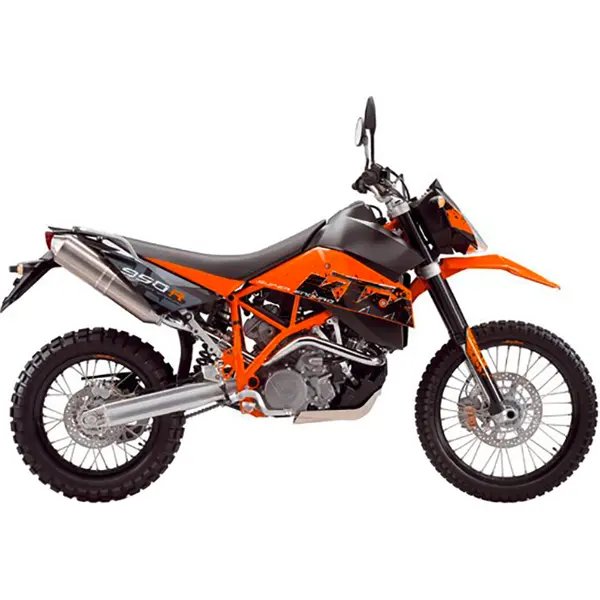

KTM 950 SUPER ENDURO R (2006–2009) — Specs
Identity
Manufacturer: KTM
Model: 950 SUPER ENDURO R
Category: Motorcycle
Type: Motorcycle
Years: 2006 → 2009
Engine
Displacement (cc): 942
Cylinders: 2
Power (hp): 98
Power (kW): 72
Dimensions
Overall length: 2240 mm
Overall width: 870 mm
Overall height: 1280 mm
Wheelbase: 1510 mm
Ground clearance: 150 mm
Weight (kg): 203
Seat height (mm): 920
Tank (L): 14.5
Tires
Front pressure (bar): 2.4
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 5/8 X 5/16" X-ring
Sprockets (front / rear): 17 / 42
Ignition
Spark plug: NGK CR8EK
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: SAE10W-50, JASO T903
Engine oil (with filter, L): 3
Oil filter: Hiflofiltro HF650
Air filter: Hiflofiltro HFA6501
Coolant (L): 2.1
Brake fluid: DOT 5.1
Fuel consumption
Estimated range: ~263 km on a full tank (14.5 L)
Service
Battery: YTX12-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.15 mm, exhaust cold 0.25-0.30 mm. Engine oil: oil grade SAE10W-50, JASO T903, 3 L with filter change. Spark plug: NGK CR8EK (gap 0.7 mm). Brake fluid: DOT 5.1. Coolant capacity: 2.1 L. Chain: 5/8 X 5/16" X-ring, sprockets 17/42 teeth. Tire pressure: front 2.4 bar, rear 2.5 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-50, JASO T903, 3.0 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF650
- Premium Hiflofiltro HF650
- Premium K&N KN-650
Air filter
Spec: Hiflofiltro HFA6501
- Standard Hiflofiltro HFA6501
Spark plug
Spec: NGK CR8EK, gap 0.7 mm
- OEM NGK CR8EK
- Premium NGK CR8EIX
- Standard NGK CR8EK
Front brake pads
Spec: OEM front pad (EBC equivalent: FA181HH)
- Premium EBC FA181HH
- Standard EBC FA181 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Drive chain
Spec: 5/8 X 5/16" X-ring | Sprockets 17/42 teeth / 5/8 X 5/16" X-ring
Front tire
Spec: 2.4 bar
Rear tire
Spec: 2.5 bar
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 5.1
- Standard TotalEnergies HBF4
Coolant
Spec: 2.10 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.15 mm
- OEM Exhaust clearance: cold 0.25-0.30 mm
Suspension
Spec: 48 mm / SAE 5W
- OEM Fork: 48 mm
- OEM Fork oil grade: SAE 5W
