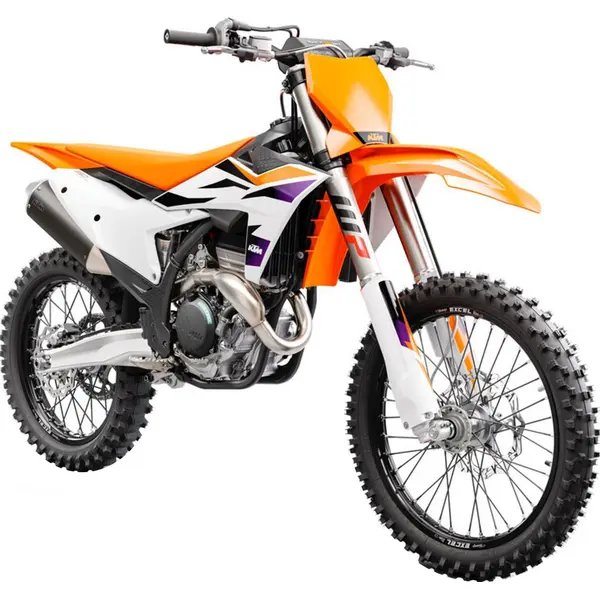

KTM 350 SX-F (2024) — Specs
Identity
Manufacturer: KTM
Model: 350 SX-F
Category: MX-Offroad
Type: MX-Offroad
Years: 2024 → 2024
Engine
Displacement (cc): 350
Cylinders: 1
Torque (Nm): 35
Dimensions
Overall length: 2185 mm
Overall width: 825 mm
Overall height: 1280 mm
Wheelbase: 1490 mm
Ground clearance: 370 mm
Tires
Front tire: 80/100-21
Rear tire: 110/90-19
Ignition
Spark plug: NGK CR9EIA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-50
Engine oil (with filter, L): 1.2
Oil filter: Hiflofiltro HF652
Air filter: Hiflofiltro HFA6101
Brake fluid: DOT 4
Service
Battery: YTX5L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Engine oil: oil grade SAE10W-50. Brake fluid: DOT 4. Chain: chain 520. Tire size: front 80/100-21, rear 110/90-19. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-50
- OEM OEM recommended engine oil (SAE 10W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF652
- Premium Hiflofiltro HF652
Spark plug
Front brake pads
Spec: OEM front pad (EBC equivalent: FA181HH)
- Premium EBC FA181HH
- Standard EBC FA181 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Front tire
Spec: 80/100-21
- OEM OEM 80/100-21
Rear tire
Spec: 110/90-19
- OEM OEM 110/90-19
Brake fluid
Spec: DOT 4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
Air filter
Spec: Hiflofiltro HFA6101
- Standard Hiflofiltro HFA6101
Drive chain
Battery
Spec: OEM battery: Yuasa YTX5L-BS
