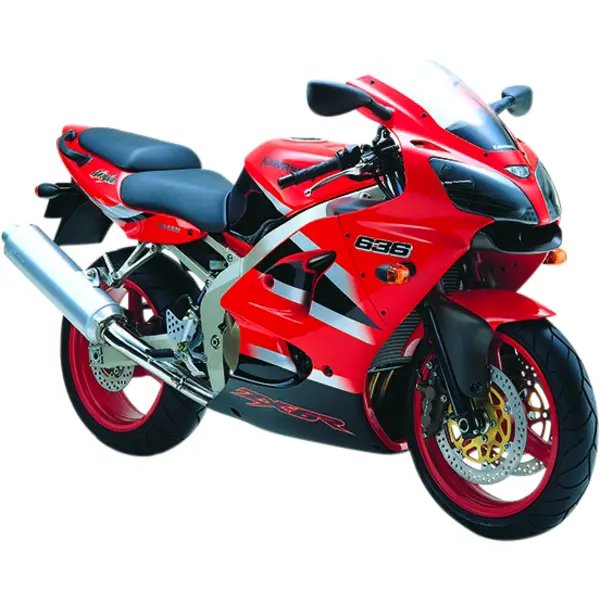

Kawasaki ZX-6R NINJA (2002) — Specs
Identity
Manufacturer: Kawasaki
Model: ZX-6R NINJA
Category: Sport
Type: Motorcycle
Years: 2002 → 2002
Engine
Displacement (cc): 636
Cylinders: 4
Power (hp): 113
Power (kW): 83
Torque (Nm): 71
Dimensions
Overall length: 2080 mm
Overall width: 730 mm
Overall height: 1110 mm
Wheelbase: 1410 mm
Ground clearance: 130 mm
Weight (kg): 199
Seat height (mm): 830
Tank (L): 18
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 520 chain, 108 links
Sprockets (front / rear): 15 / 40
Ignition
Spark plug: NGK CR9E
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 3.6
Oil filter: Hiflofiltro HF303
Air filter: Hiflofiltro HFA2923
Coolant (L): 2.3
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~360 km on a full tank (18.0 L)
Service
Battery: OEM battery specification
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 42000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 42,000 km. Valve clearance — intake cold 0.11-0.19 mm, exhaust cold 0.22-0.31 mm. Engine oil: oil grade SAE10W-40, API SG, 3.6 L with filter change. Spark plug: NGK CR9E (gap 0.8 mm). Brake fluid: DOT 4. Coolant capacity: 2.3 L. Chain: 108 links, sprockets 15/40 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 3.6 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF303
- Premium Hiflofiltro HF303
- Premium K&N KN-303
Air filter
Spec: Hiflofiltro HFA2923
- Standard Hiflofiltro HFA2923
Spark plug
Spec: NGK CR9E, gap 0.8 mm
- OEM NGK CR9E
- Premium NGK CR9EIX
- Standard NGK CR9E
Front brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Rear brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Drive chain
Spec: 108 links | Sprockets 15/40 teeth / 108 links
Front sprocket
Spec: 15 teeth
Rear sprocket
Spec: 40 teeth
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.30 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 42 000 km
- OEM Intake clearance: cold 0.11-0.19 mm
- OEM Exhaust clearance: cold 0.22-0.31 mm
Suspension
Spec: 46 mm telescopic fork / 457 ml SAE 10W
- OEM Fork: 46 mm telescopic fork
- OEM Fork oil grade: 457 ml SAE 10W
