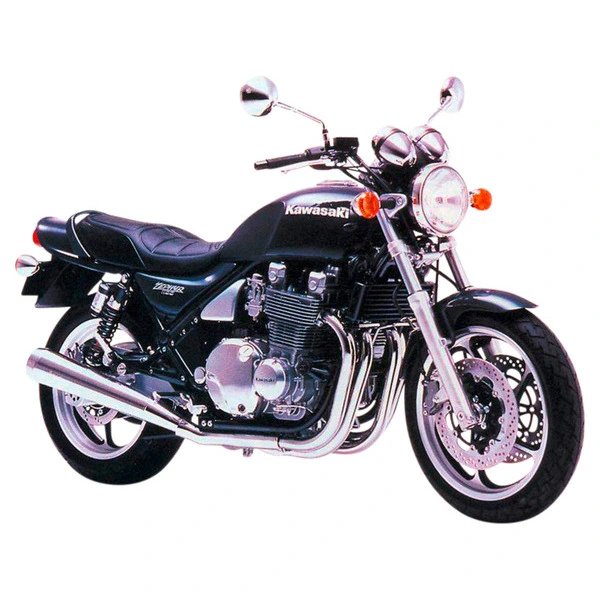

Kawasaki ZEPHYR 1100 (1992–1995) — Specs
Identity
Manufacturer: Kawasaki
Model: ZEPHYR 1100
Category: Motorcycle
Type: Motorcycle
Years: 1992 → 1995
Engine
Displacement (cc): 1062
Cylinders: 4
Power (hp): 93
Power (kW): 68
Torque (Nm): 90
Dimensions
Overall length: 2240 mm
Overall width: 870 mm
Overall height: 1280 mm
Wheelbase: 1510 mm
Ground clearance: 150 mm
Weight (kg): 265
Seat height (mm): 795
Tank (L): 19
Tires
Front tire: 110/80-17
Rear tire: 150/70-17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 530 chain, 116 links
Sprockets (front / rear): 16 / 48
Ignition
Spark plug: NGK CR9E
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE
Engine oil (with filter, L): 4.1
Engine oil (without filter, L): 3.8
Oil filter: Hiflofiltro HF401
Air filter: Hiflofiltro HFA2705
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~345 km on a full tank (19.0 L)
Service
Battery: YTX12-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.19 mm, exhaust cold 0.15-0.24 mm. Engine oil: oil grade SAE10W-40, API SE, 4.1 L with filter change, 3.8 L without filter change. Spark plug: NGK CR9E (gap 0.8 mm). Brake fluid: DOT 4. Chain: 116 links, sprockets 16/48 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 110/80-17, rear 150/70-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE, 4.1 L (with filter), 3.8 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF401
- Premium Hiflofiltro HF401
- Premium K&N KN-401
Air filter
Spec: Hiflofiltro HFA2705
- Standard Hiflofiltro HFA2705
Spark plug
Spec: NGK CR9E, gap 0.8 mm
- OEM NGK CR9E
- Premium NGK CR9EIX
- Standard NGK CR9E
Front brake pads
Spec: OEM front pad (EBC equivalent: FA231HH)
- Premium EBC FA231HH
- Standard EBC FA231 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Drive chain
Spec: 116 links | Sprockets 16/48 teeth / 116 links
Front tire
Spec: 110/80-17, 2.5 bar
- OEM OEM 110/80-17
Rear tire
Spec: 150/70-17, 2.9 bar
- OEM OEM 150/70-17
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.19 mm
- OEM Exhaust clearance: cold 0.15-0.24 mm
Suspension
Spec: 43 mm telescopic fork / 470 ml SAE 15W
- OEM Fork: 43 mm telescopic fork
- OEM Fork oil grade: 470 ml SAE 15W
