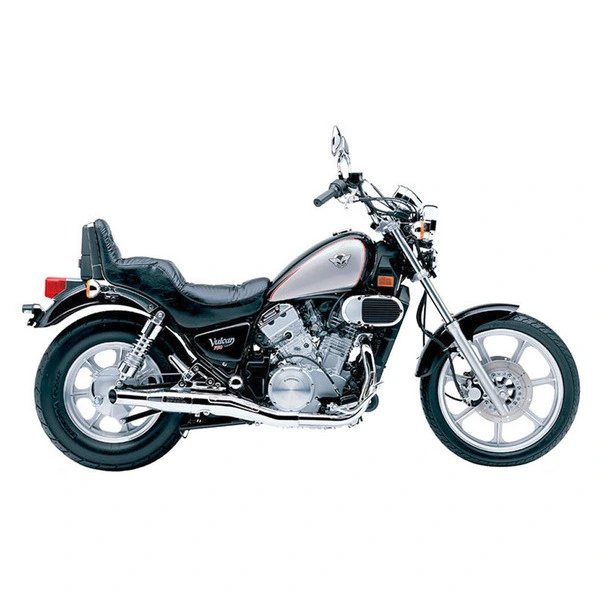

Kawasaki VN 750 VULCAN (1993–1995) — Specs
Identity
Manufacturer: Kawasaki
Model: VN 750 VULCAN
Category: Cruiser
Type: Motorcycle
Years: 1993 → 1995
Engine
Displacement (cc): 749
Cylinders: 2
Power (hp): 60
Power (kW): 44
Torque (Nm): 60
Dimensions
Overall length: 2400 mm
Overall width: 940 mm
Overall height: 1140 mm
Wheelbase: 1645 mm
Ground clearance: 140 mm
Weight (kg): 240
Tank (L): 13.5
Tires
Front tire: 100/90-19
Rear tire: 140/90-15
Front pressure (bar): 2
Rear pressure (bar): 2.3
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK DPR7EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 3.8
Oil filter: Hiflofiltro HF202
Air filter: Hiflofiltro HFA2709
Coolant (L): 1.8
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~245 km on a full tank (13.5 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE10W-40, API SG, 3.8 L with filter change. Spark plug: NGK DPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.8 L. Drive: shaft drive. Tire pressure: front 2 bar, rear 2.3 bar (cold). Tire size: front 100/90-19, rear 140/90-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 3.8 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF202
- Premium Hiflofiltro HF202
- Premium K&N KN-202
Air filter
Spec: Hiflofiltro HFA2709
- Standard Hiflofiltro HFA2709
Spark plug
Spec: NGK DPR7EA-9, gap 0.9 mm
- OEM NGK DPR7EA-9
- Premium NGK DPR7EIX-9
- Standard NGK DPR7EA-9
Front brake pads
Spec: EBC FA085HH
- Premium EBC FA085HH
Rear brake pads
Spec: EBC FA085HH
- Premium EBC FA085HH
Front tire
Spec: 100/90-19, 2.0 bar
- OEM OEM 100/90-19
Rear tire
Spec: 140/90-15, 2.3 bar
- OEM OEM 140/90-15
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.80 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Hydraulic lifters — no manual adjustment needed
Suspension
Spec: 38 mm telescopic fork / 320 ml SAE 15W
- OEM Fork: 38 mm telescopic fork
- OEM Fork oil grade: 320 ml SAE 15W
Drive chain
