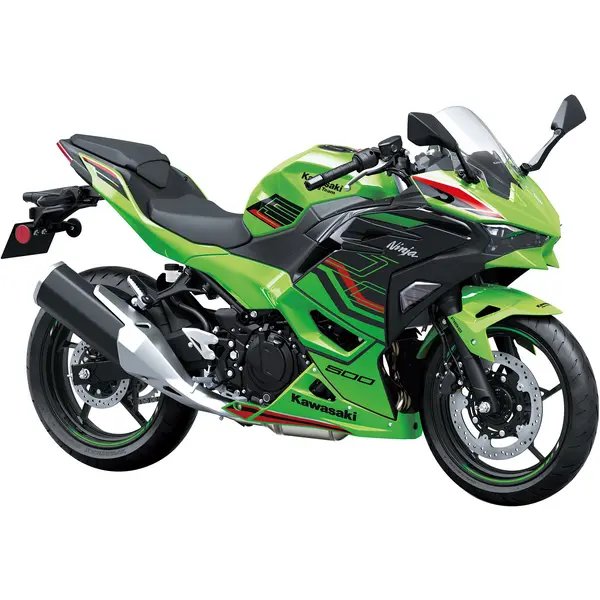

Kawasaki Ninja 500 SE (Euro 5+) (2024) — Specs
Identity
Manufacturer: Kawasaki
Model: Ninja 500 SE (Euro 5+)
Category: Sport
Type: Motorcycle
Years: 2024 →
Engine
Displacement (cc): 451
Cylinders: 2
Power (hp): 45
Power (kW): 33
Dimensions
Overall length: 2080 mm
Overall width: 730 mm
Overall height: 1110 mm
Wheelbase: 1410 mm
Ground clearance: 130 mm
Weight (kg): 172
Seat height (mm): 785
Tank (L): 14
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2
Rear pressure (bar): 2.3
Drivetrain
Sprockets (front / rear): 14 / 43
Ignition
Spark plug: NGK LMAR9G
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 2
Engine oil (without filter, L): 1.6
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA2406
Coolant (L): 1.3
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~350 km on a full tank (14.0 L)
Service
Battery: OEM battery specification
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 42000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 42,000 km. Engine oil: oil grade SAE10W-40, API SG, 2 L with filter change, 1.6 L without filter change. Spark plug: NGK LMAR9G (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.3 L. Sprockets: 14/43 teeth. Tire pressure: front 2 bar, rear 2.3 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 2.0 L (with filter), 1.6 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA2406
- Standard Hiflofiltro HFA2406
Spark plug
Spec: NGK LMAR9G, gap 0.7-0.8 mm
- OEM NGK LMAR9G
- Premium NGK LMAR9GIX
- Standard NGK LMAR9G
Front brake pads
Spec: EBC FA132
- Premium EBC FA132
Rear brake pads
Spec: EBC FA132
- Premium EBC FA132
Drive chain
Spec: Sprockets 14/43 teeth
Front tire
Spec: 120/70 ZR17, 2.0 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.3 bar
- OEM OEM rear: 180/55 ZR17
Battery
- Premium Yuasa YTX9-BS or YTZ7S (typical 250-500cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.30 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 42 000 km
Suspension
Spec: 41 mm telescopic fork
- OEM Fork: 41 mm telescopic fork
