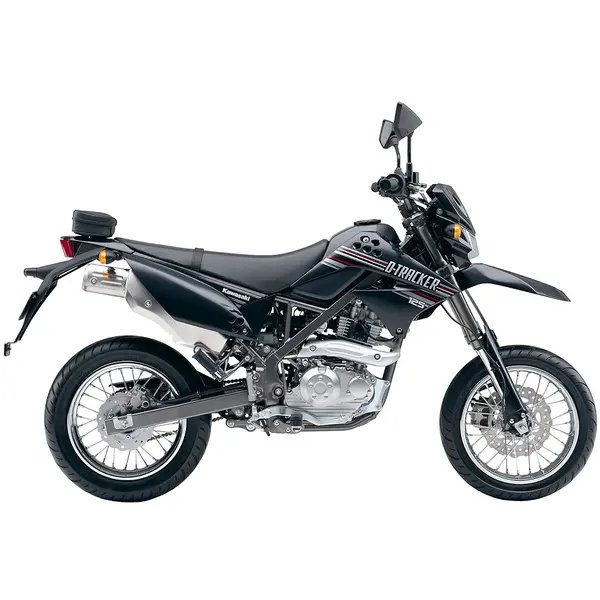

Kawasaki D-TRACKER 125 (KLX 125/SUPERMOTO) (2010–2012) — Specs
Identity
Manufacturer: Kawasaki
Model: D-TRACKER 125 (KLX 125/SUPERMOTO)
Category: Motorcycle
Type: Motorcycle
Years: 2010 → 2012
Engine
Displacement (cc): 125
Cylinders: 1
Power (hp): 10
Power (kW): 7.6
Torque (Nm): 8
Dimensions
Overall length: 1830 mm
Overall width: 770 mm
Overall height: 1075 mm
Wheelbase: 1240 mm
Ground clearance: 290 mm
Weight (kg): 114
Seat height (mm): 805
Tank (L): 7
Tires
Front tire: 80/100-21
Rear tire: 100/90-19
Front pressure (bar): 1.5
Rear pressure (bar): 1.7
Drivetrain
Drive chain: 420 chain, 122 links
Sprockets (front / rear): 14 / 44
Ignition
Spark plug: NGK CR7HSA
Plug gap: 0.8 mm
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 1
Engine oil (without filter, L): 0.9
Oil filter: Hiflofiltro HF112
Air filter: Hiflofiltro HFA2602
Brake fluid: DOT 4
Fuel consumption
Estimated: 2.5 L/100 km
Estimated range: ~280 km on a full tank (7.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.04-0.08 mm, exhaust cold 0.08-0.12 mm. Engine oil: oil grade SAE10W-40, API SG, 1 L with filter change, 0.9 L without filter change. Spark plug: NGK CR7HSA (gap 0.8 mm). Brake fluid: DOT 4. Chain: 122 links, sprockets 14/44 teeth. Tire pressure: front 1.5 bar, rear 1.7 bar (cold). Tire size: front 80/100-21, rear 100/90-19. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-40, 1.5 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF112
- Premium Hiflofiltro HF112
- Premium K&N KN-112
Air filter
Spec: Hiflofiltro HFA2602
- Standard Hiflofiltro HFA2602
Spark plug
Spec: NGK CR8E, gap 0.7-0.8 mm
- OEM NGK CR8E
- Premium NGK CR8EIX
- Standard NGK CR8E
Front brake pads
Spec: OEM front pad (EBC equivalent: FA67HH)
- Premium EBC FA67HH
- Standard EBC FA67 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Drive chain
Spec: 122 links | Sprockets 14/44 teeth / 122 links
Front tire
Spec: 80/100-21, 1.5 bar
- OEM OEM 80/100-21
Rear tire
Spec: 100/90-19, 1.7 bar
- OEM OEM 100/90-19
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- Premium Yuasa YTX4L-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.04-0.08 mm
- OEM Exhaust clearance: cold 0.08-0.12 mm
Suspension
Spec: 35 mm USD fork / SAE 10W
- OEM Fork: 35 mm USD fork
- OEM Fork oil grade: SAE 10W
