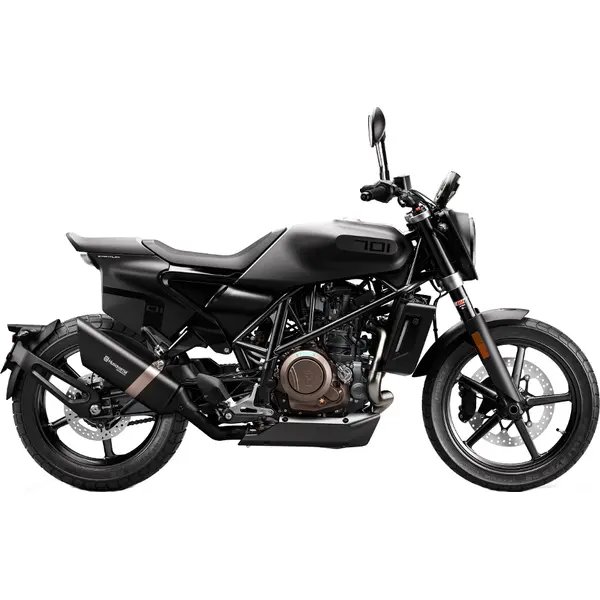

Husqvarna SVARTPILEN 701 (2019–2020) — Specs
Identity
Manufacturer: Husqvarna
Model: SVARTPILEN 701
Category: Naked
Type: Motorcycle
Years: 2019 → 2020
Engine
Displacement (cc): 693
Cylinders: 1
Power (hp): 75
Power (kW): 55
Torque (Nm): 73
Dimensions
Overall length: 2105 mm
Overall width: 805 mm
Overall height: 1075 mm
Wheelbase: 1462 mm
Ground clearance: 145 mm
Weight (kg): 159
Seat height (mm): 835
Tank (L): 12
Tires
Front tire: 120/70 ZR17
Rear tire: 160/60 ZR17
Drivetrain
Drive chain: 5/8 X 1/4"" X-ring
Ignition
Spark plug: NGK LMAR7DI-10
Plug gap: 1.0 mm
Fluids & Filters
Engine oil: SAE10W-60, 10W-50
Engine oil (with filter, L): 1.7
Oil filter: Hiflofiltro HF651
Air filter: Hiflofiltro HFA6203
Coolant (L): 1.2
Brake fluid: DOT 5.1
Fuel consumption
Estimated range: ~250 km on a full tank (12.0 L)
Service
Battery: YTZ14S
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Engine oil: oil grade SAE10W-60, 10W-50, 1.7 L with filter change. Spark plug: outer LMAR7DI-10 (gap 1.0 mm). Brake fluid: DOT 5.1. Coolant capacity: 1.2 L. Chain: 5/8 X 1/4"" X-ring. Tire size: front 120/70 ZR17, rear 160/60 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-50, 1.7 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-60)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF651
- Premium Hiflofiltro HF651
- Premium K&N KN-651
Air filter
Spec: Hiflofiltro HFA6203
- Standard Hiflofiltro HFA6203
Spark plug
Spec: NGK LMAR8AI-9, gap 0.7-0.8 mm
- OEM NGK LMAR8AI-9
- Premium NGK LMAR8AI-9
- Standard NGK LMAR8AI-9
Front brake pads
Rear brake pads
Drive chain
Spec: 5/8 X 1/4"" X-ring | 5/8 X 1/4"" X-ring
Front tire
Spec: 120/70 ZR17
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 160/60 ZR17
- OEM OEM 160/60 ZR17
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 5.1
- Standard TotalEnergies HBF4
Coolant
Spec: 1.20 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
