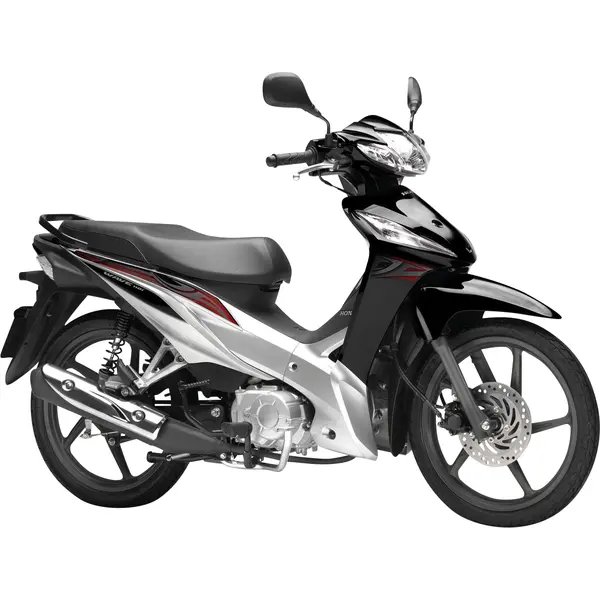

Honda WAVE 110 I (AFS 110 2 SH) (2012–2016) — Specs
Identity
Manufacturer: Honda
Model: WAVE 110 I (AFS 110 2 SH)
Category: Scooter
Type: Scooter
Years: 2012 → 2016
Engine
Displacement (cc): 110
Cylinders: 1
Power (hp): 8.5
Power (kW): 6.3
Torque (Nm): 8.5
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 99
Seat height (mm): 760
Tank (L): 3.7
Tires
Front tire: 70/90-17
Rear tire: 80/90-17
Drivetrain
Drive chain: 104 links
Sprockets (front / rear): 14 / 37
Ignition
Spark plug: NGK CPR6EA-9S
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (without filter, L): 0.7
Oil filter: Hiflofiltro HF117
Air filter: Hiflofiltro HFA1119
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~148 km on a full tank (3.7 L)
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Valve clearance — intake cold 0.08-0.12 mm, exhaust cold 0.08-0.12 mm. Engine oil: oil grade SAE10W-30, API SG, 0.7 L without filter change. Spark plug: NGK CPR6EA-9S (gap 0.8-0.9 mm). Brake fluid: DOT 4. Chain: 104 links, sprockets 14/37 teeth. Tire size: front 70/90-17, rear 80/90-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-30, API SG, 0.7 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100
- Premium Motul 5100
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T
- Standard Elf Moto 4 Tech
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF117
- Premium Hiflofiltro HF117
- Premium K&N KN-117
Air filter
Spec: Hiflofiltro HFA1119
- Standard Hiflofiltro HFA1119
Spark plug
Spec: NGK CPR6EA-9S, gap 0.8-0.9 mm
- OEM NGK CPR6EA-9
- Premium NGK CPR6EAIX-9
- Standard NGK CPR6EA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA85HH)
- Premium EBC FA85HH
- Standard EBC FA85 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA85HH)
- Premium EBC FA85HH
- Standard EBC FA85 (organic)
Drive belt (CVT)
Front tire
Spec: 70/90-17
- OEM OEM 70/90-17
Rear tire
Spec: 80/90-17
- OEM OEM 80/90-17
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- Premium Yuasa YTX5L-BS or YT4B-BS (typical 50-125cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
- OEM Intake clearance: cold 0.08-0.12 mm
- OEM Exhaust clearance: cold 0.08-0.12 mm
Suspension
Spec: 26 mm telescopic fork
- OEM Fork: 26 mm telescopic fork
