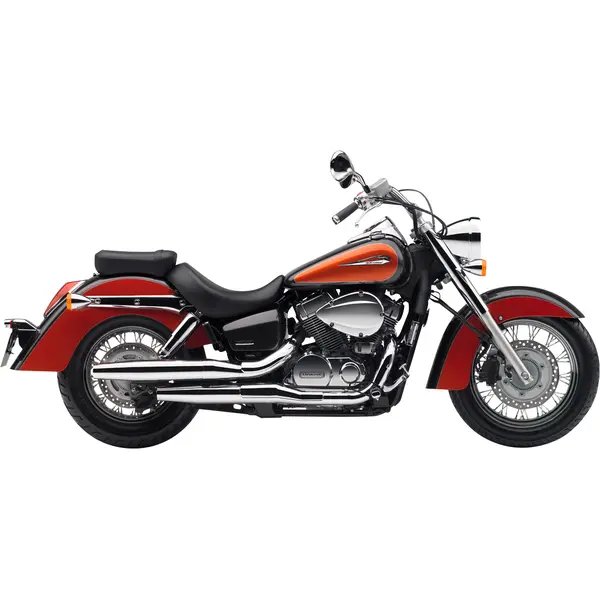

Honda VT 750 C SHADOW ABS (2010) — Specs
Identity
Manufacturer: Honda
Model: VT 750 C SHADOW ABS
Category: Cruiser
Type: Motorcycle
Years: 2010 →
Engine
Displacement (cc): 745
Cylinders: 2
Power (hp): 46
Power (kW): 34
Torque (Nm): 60
Dimensions
Overall length: 2400 mm
Overall width: 940 mm
Overall height: 1140 mm
Wheelbase: 1645 mm
Ground clearance: 140 mm
Weight (kg): 265
Seat height (mm): 658
Tank (L): 14.5
Tires
Front tire: 120/90-17
Rear tire: 160/80-15
Front pressure (bar): 2
Rear pressure (bar): 2
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK DPR7EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (with filter, L): 2.6
Engine oil (without filter, L): 2.5
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA1505
Coolant (L): 2
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~263 km on a full tank (14.5 L)
Service
Battery: YTX14-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE10W-30, API SG, 2.6 L with filter change, 2.5 L without filter change. Spark plug: NGK DPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2 L. Drive: shaft drive. Tire pressure: front 2 bar, rear 2 bar (cold). Tire size: front 120/90-17, rear 160/80-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-30, API SG, 2.6 L (with filter), 2.5 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA1505
- Standard Hiflofiltro HFA1505
Spark plug
Spec: NGK DPR7EA-9, gap 0.9 mm
- OEM NGK DPR7EA-9
- Premium NGK DPR7EIX-9
- Standard NGK DPR7EA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA388HH)
- Premium EBC FA388HH
- Standard EBC FA388 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Front tire
Spec: 120/90-17, 2.0 bar
- OEM OEM 120/90-17
Rear tire
Spec: 160/80-15, 2.0 bar
- OEM OEM 160/80-15
Battery
Spec: OEM battery: Yuasa YTX14-BS
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.00 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 41 mm telescopic fork
- OEM Fork: 41 mm telescopic fork
Drive chain
