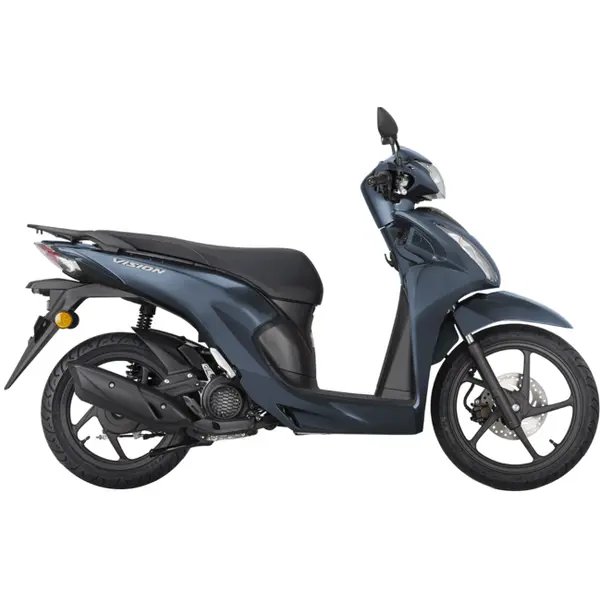

Honda Vision 110 CBS (NSC 110) (EURO 5) (2021–2024) — Specs
Identity
Manufacturer: Honda
Model: Vision 110 CBS (NSC 110) (EURO 5)
Category: Scooter
Type: Scooter
Years: 2021 → 2024
Engine
Displacement (cc): 109
Cylinders: 1
Power (hp): 9
Power (kW): 6.6
Torque (Nm): 9
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 100
Seat height (mm): 785
Tank (L): 4.9
Tires
Front tire: 90/90-14
Rear tire: 100/90-14
Front pressure (bar): 2
Rear pressure (bar): 2.3
Ignition
Spark plug: NGK MR7C-9N
Fluids & Filters
Engine oil: SAE10W-30, API SG
Oil filter: OEM oil filter
Air filter: OEM air filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~196 km on a full tank (4.9 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Engine oil: oil grade SAE10W-30, API SG. Spark plug: NGK MR7C-9N. Brake fluid: DOT 4. Tire pressure: front 2 bar, rear 2.3 bar (cold). Tire size: front 90/90-14, rear 100/90-14. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-30, 0.9 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100
- Premium Motul 5100
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T
- Standard Elf Moto 4 Tech
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Air filter
Spark plug
Spec: NGK CPR7EA-9, gap 0.8-0.9 mm
- OEM NGK CPR7EA-9
- Premium NGK CPR7EAIX-9
- Standard NGK CPR7EA-9
Front brake pads
Rear brake pads
Front tire
Spec: 90/90-14, 2.0 bar
- OEM OEM 90/90-14
Rear tire
Spec: 100/90-14, 2.3 bar
- OEM OEM 100/90-14
Battery
- Premium Yuasa YTX5L-BS or YT4B-BS (typical 50-125cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
Suspension
Spec: 31 mm telescopic fork
- OEM Fork: 31 mm telescopic fork
