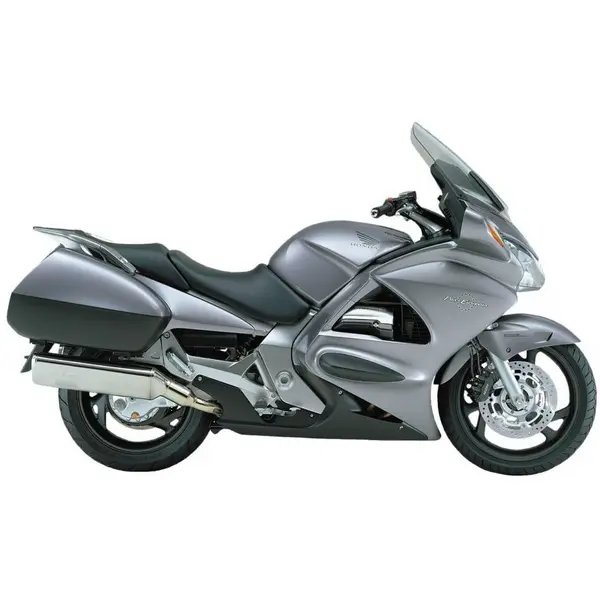

Honda ST 1300 PAN EUROPEAN (ABS) (2002–2016) — Specs
Identity
Manufacturer: Honda
Model: ST 1300 PAN EUROPEAN (ABS)
Category: Motorcycle
Type: Motorcycle
Years: 2002 → 2016
Engine
Displacement (cc): 1261
Cylinders: 4
Power (hp): 126
Power (kW): 93
Dimensions
Overall length: 2380 mm
Overall width: 920 mm
Overall height: 1340 mm
Wheelbase: 1580 mm
Ground clearance: 140 mm
Weight (kg): 323
Seat height (mm): 775
Tank (L): 29
Tires
Front pressure (bar): 2.9
Rear pressure (bar): 2.9
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK CR7EH-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE-SG
Engine oil (with filter, L): 3.9
Engine oil (without filter, L): 3.6
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA1923
Coolant (L): 2.7
Brake fluid: DOT 4
Fuel consumption
Estimated: 6.0 L/100 km
Estimated range: ~483 km on a full tank (29.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.16 ± 0.03MM, exhaust cold 0.25 ± 0.03MM. Engine oil: oil grade SAE10W-40, API SE-SG, 3.9 L with filter change, 3.6 L without filter change. Spark plug: NGK CR7EH-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2.7 L. Drive: shaft drive. Tire pressure: front 2.9 bar, rear 2.9 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE-SG, 3.9 L (with filter), 3.6 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA1923
- Standard Hiflofiltro HFA1923
Spark plug
Spec: NGK CR7EH-9, gap 0.8-0.9 mm
- OEM NGK CR7EH-9
- Premium NGK CR7EHIX-9
- Standard NGK CR7EH-9
Front brake pads
Spec: EBC FA261HH
- Premium EBC FA261HH
Rear brake pads
Spec: EBC FA261HH
- Premium EBC FA261HH
Front tire
Spec: 2.9 bar
Rear tire
Spec: 2.9 bar
Battery
- Premium Yuasa YTX14-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.70 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.16 ± 0.03MM
- OEM Exhaust clearance: cold 0.25 ± 0.03MM
Suspension
Spec: 45 mm telescopic fork / 638 ± 2.5 ml 10W
- OEM Fork: 45 mm telescopic fork
- OEM Fork oil grade: 638 ± 2.5 ml 10W
Drive chain
