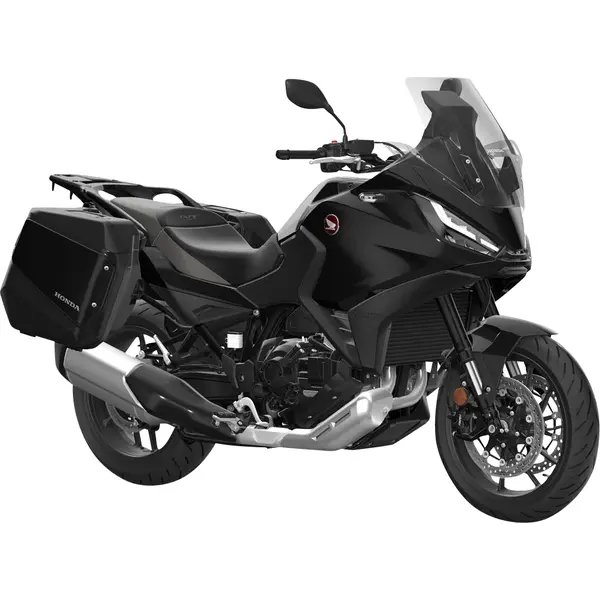

Honda NT 1100 (EURO 5) (2022–2024) — Specs
Identity
Manufacturer: Honda
Model: NT 1100 (EURO 5)
Category: Motorcycle
Type: Motorcycle
Years: 2022 → 2024
Engine
Displacement (cc): 1084
Cylinders: 2
Power (hp): 102
Power (kW): 75
Torque (Nm): 104
Dimensions
Overall length: 2240 mm
Overall width: 845 mm
Overall height: 1500 mm
Wheelbase: 1535 mm
Ground clearance: 165 mm
Weight (kg): 238
Seat height (mm): 820
Tank (L): 20.4
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 530 chain
Sprockets (front / rear): 16 / 40
Ignition
Spark plug: NGK SILMAR8A9S
Fluids & Filters
Engine oil: SAE10W-30
Engine oil (with filter, L): 4
Oil filter: Hiflofiltro HF117
Air filter: OEM air filter
Coolant (L): 2.25
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~370 km on a full tank (20.4 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE10W-30, 4 L with filter change. Spark plug: NGK SILMAR8A9S. Brake fluid: DOT 4. Coolant capacity: 2.25 L. Chain: chain, sprockets 16/40 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-30, 4.0 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF117
- Premium Hiflofiltro HF117
- Premium K&N KN-117
Air filter
Spark plug
Spec: NGK SILMAR8A9S
Front brake pads
Spec: EBC FA679HH
- Premium EBC FA679HH
Rear brake pads
Spec: EBC FA679HH
- Premium EBC FA679HH
Drive chain
Spec: chain | Sprockets 16/40 teeth
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.25 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 43 mm USD fork / SAE 10W
- OEM Fork: 43 mm USD fork
- OEM Fork oil grade: SAE 10W
