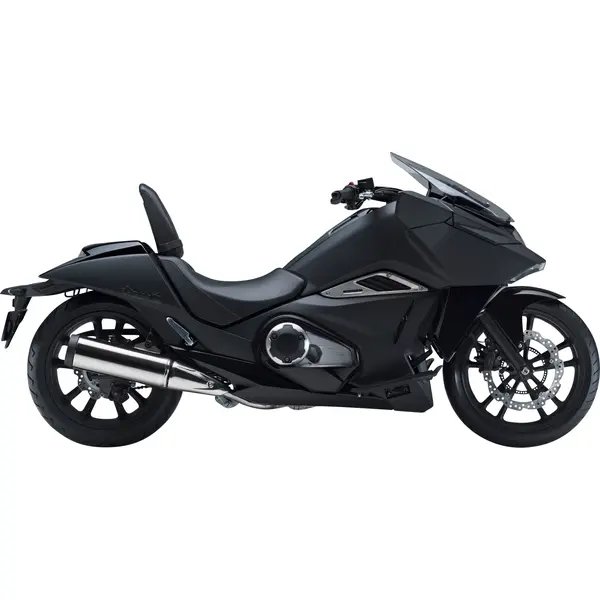

Honda NC 750 J NM4 VULTUS (2015–2016) — Specs
Identity
Manufacturer: Honda
Model: NC 750 J NM4 VULTUS
Category: Scooter
Type: Scooter
Years: 2015 → 2016
Engine
Displacement (cc): 745
Cylinders: 2
Power (hp): 55
Power (kW): 40
Dimensions
Overall length: 1900 mm
Overall width: 730 mm
Overall height: 1170 mm
Wheelbase: 1335 mm
Ground clearance: 125 mm
Weight (kg): 245
Seat height (mm): 650
Tank (L): 11.6
Tires
Front tire: 120/70-15
Rear tire: 160/60-15
Ignition
Spark plug: NGK IFR6G-11K
Plug gap: 1-1.1 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (with filter, L): 3.4
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA1717
Brake fluid: DOT 4
Fuel consumption
Manufacturer / WMTC: 3.5 L/100 km
Real-world range: ~331 km on a full tank (11.6 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTZ14S
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 18000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 18,000 km. Valve clearance — intake cold 0.15-0.19 mm, exhaust cold 0.26-0.30 mm. Engine oil: oil grade SAE10W-30, API SG, 3.4 L with filter change. Spark plug: NGK IFR6G-11K (gap 1-1.1 mm). Brake fluid: DOT 4. Chain: chain. Tire size: front 120/70-15, rear 160/60-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-30, 3.6 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA1717
- Standard Hiflofiltro HFA1717
Spark plug
Spec: NGK SILMAR8A9S, gap 0.8-0.9 mm
- OEM NGK SILMAR8A9S
- Premium NGK SILMAR8A9S
- Standard NGK SILMAR8A9S
Front brake pads
Spec: OEM front pad (EBC equivalent: FA399HH)
- Premium EBC FA399HH
- Standard EBC FA399 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA436HH)
- Premium EBC FA436HH
- Standard EBC FA436 (organic)
Drive belt (CVT)
Front tire
Spec: 120/70-15
- OEM OEM 120/70-15
Rear tire
Spec: 160/60-15
- OEM OEM 160/60-15
Battery
Spec: OEM battery: Yuasa YTZ14S
- OEM OEM battery: Yuasa YTZ14S
- Premium Yuasa YTZ14S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 18 000 km
- OEM Intake clearance: cold 0.15-0.19 mm
- OEM Exhaust clearance: cold 0.26-0.30 mm
Suspension
Spec: 43 mm telescopic fork / SAE 10W
- OEM Fork: 43 mm telescopic fork
- OEM Fork oil grade: SAE 10W
