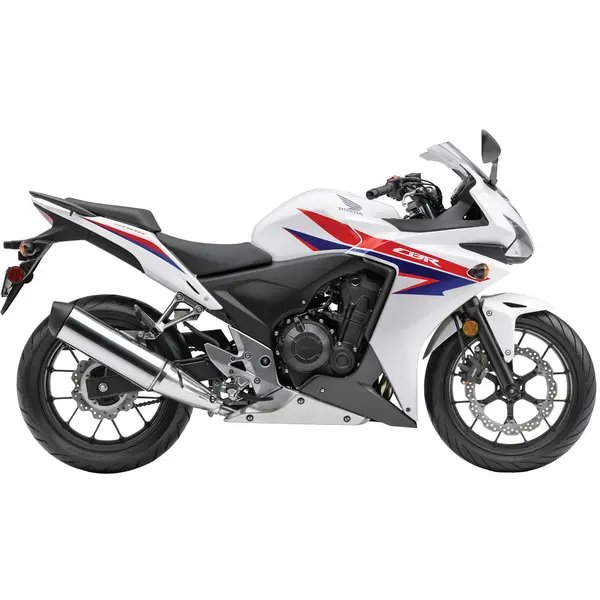

Honda CBR 500 R/RA (2013–2015) — Specs
Identity
Manufacturer: Honda
Model: CBR 500 R/RA
Category: Sport
Type: Motorcycle
Years: 2013 → 2015
Engine
Displacement (cc): 471
Cylinders: 2
Power (hp): 48
Power (kW): 35
Torque (Nm): 43
Dimensions
Overall length: 2080 mm
Overall width: 760 mm
Overall height: 1145 mm
Wheelbase: 1410 mm
Ground clearance: 145 mm
Weight (kg): 194
Seat height (mm): 790
Tank (L): 15.7
Tires
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 520 chain, 112 links
Sprockets (front / rear): 15 / 41
Ignition
Spark plug: NGK CPR8EA-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: SAE10W-30, API SG
Engine oil (with filter, L): 2.7
Engine oil (without filter, L): 2.5
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA1509
Coolant (L): 1.4
Brake fluid: DOT 4
Fuel consumption
Manufacturer / WMTC: 3.5 L/100 km
Real-world range: ~448 km on a full tank (15.7 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTZ12S
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.16 ± 0.03MM, exhaust cold 0.27 ±0.027MM. Engine oil: oil grade SAE10W-30, API SG, 2.7 L with filter change, 2.5 L without filter change. Spark plug: NGK CPR8EA-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.4 L. Chain: 112 links, sprockets 15/41 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-30, 3.2 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-30)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA1509
- Premium K&N HA-5013
- Standard Hiflofiltro HFA1509
Spark plug
Spec: NGK SIMR8A9, gap 0.8-0.9 mm
- OEM NGK SIMR8A9
- Premium NGK SIMR8A9
- Standard NGK SIMR8A9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA174HH)
- Premium EBC FA174HH
- Standard EBC FA174 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA140HH)
- Premium EBC FA140HH
- Standard EBC FA140 (organic)
Drive chain
Spec: 112 links | Sprockets 15/41 teeth / 112 links
Front tire
Spec: 2.5 bar
Rear tire
Spec: 2.9 bar
Battery
Spec: OEM battery: Yuasa YTZ12S
- OEM OEM battery: Yuasa YTZ12S
- Premium Yuasa YTZ12S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.40 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.16 ± 0.03MM
- OEM Exhaust clearance: cold 0.27 ±0.027MM
Suspension
Spec: 41 mm telescopic fork / 503 ml SAE 10W
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 503 ml SAE 10W
