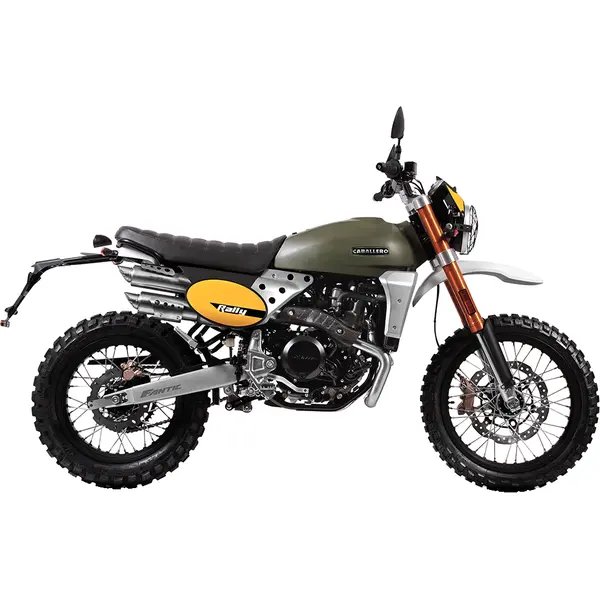

Fantic CABALLERO 500 RALLY/EXPLORER (EURO 5) (2022) — Specs
Identity
Manufacturer: Fantic
Model: CABALLERO 500 RALLY/EXPLORER (EURO 5)
Category: Adventure
Type: Motorcycle
Years: 2022 →
Engine
Displacement (cc): 449
Cylinders: 1
Power (hp): 40
Power (kW): 29
Torque (Nm): 35
Dimensions
Overall length: 2270 mm
Overall width: 920 mm
Overall height: 1430 mm
Wheelbase: 1545 mm
Ground clearance: 220 mm
Weight (kg): 157
Seat height (mm): 860
Tank (L): 12
Tires
Front tire: 90/90-21
Rear tire: 150/70-18
Drivetrain
Drive chain: Chain
Fluids & Filters
Oil filter: Hiflofiltro HF691
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~342 km on a full tank (12.0 L)
Service
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Brake fluid: DOT 4. Chain: KETTENNATRIEB. Tire size: front 90/90-21, rear 150/70-18. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF691
- Premium Hiflofiltro HF691
Spark plug
Front brake pads
Rear brake pads
Front tire
Spec: 90/90-21
- OEM OEM 90/90-21
Rear tire
Spec: 150/70-18
- OEM OEM 150/70-18
Brake fluid
Spec: DOT 4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
Air filter
Drive chain
Battery
- Premium Yuasa YTX9-BS or YTZ7S (typical 250-500cc)
