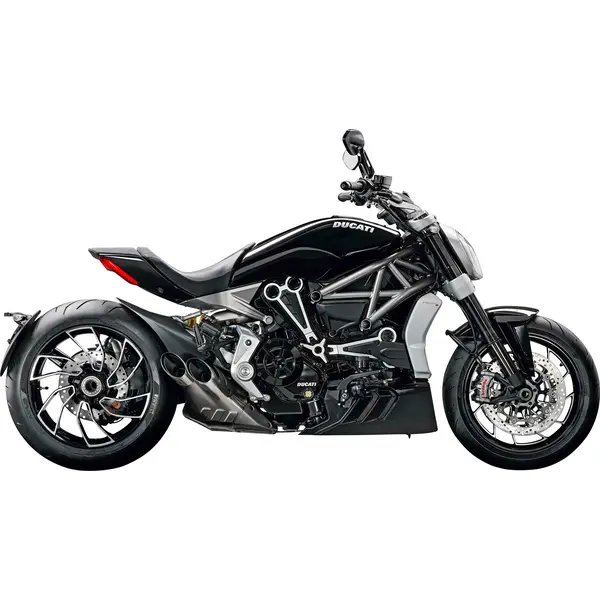

Ducati XDIAVEL/S V2 (EURO 4) (2018–2020) — Specs
Identity
Manufacturer: Ducati
Model: XDIAVEL/S V2 (EURO 4)
Category: Cruiser
Type: Motorcycle
Years: 2018 → 2020
Engine
Displacement (cc): 1262
Cylinders: 2
Power (hp): 156
Power (kW): 115
Torque (Nm): 127
Dimensions
Overall length: 2400 mm
Overall width: 940 mm
Overall height: 1140 mm
Wheelbase: 1645 mm
Ground clearance: 140 mm
Weight (kg): 247
Seat height (mm): 755
Tank (L): 18
Tires
Front tire: 120/70 R17
Rear tire: 240/45 R17
Front pressure (bar): 2.5
Rear pressure (bar): 2.5
Drivetrain
Final drive: Toothed belt
Sprockets (front / rear): 28 / 80
Ignition
Spark plug: NGK MAR10A-J
Fluids & Filters
Engine oil: SAE15W-50, API SM
Engine oil (with filter, L): 4.2
Oil filter: Hiflofiltro HF159
Air filter: Hiflofiltro HFA6107
Coolant (L): 2.5
Brake fluid: DOT 4
Fuel consumption
Estimated: 6.5 L/100 km
Estimated range: ~276 km on a full tank (18.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX14-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE15W-50, API SM, 4.2 L with filter change. Spark plug: NGK MAR10A-J. Brake fluid: DOT 4. Coolant capacity: 2.5 L. Chain: toothed belt, sprockets 28/80 teeth. Tire pressure: front 2.5 bar, rear 2.5 bar (cold). Tire size: front 120/70 R17, rear 240/45 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE15W-50, API SM, 4.2 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF159
- Premium Hiflofiltro HF159
- Premium K&N KN-159
Air filter
Spec: Hiflofiltro HFA6107
- Standard Hiflofiltro HFA6107
Spark plug
Spec: NGK MAR10A-J
- OEM NGK MAR10A
- Premium NGK MAR10AIX
- Standard NGK MAR10A
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA266HH)
- Premium EBC FA266HH
- Standard EBC FA266 (organic)
Front tire
Spec: 120/70 R17, 2.5 bar
- OEM OEM 120/70 R17
Rear tire
Spec: 240/45 R17, 2.5 bar
- OEM OEM 240/45 R17
Battery
Spec: OEM battery: Yuasa YTX14-BS
- Premium Yuasa YTX14-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.50 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Desmodromic valves — specialist service
Suspension
Spec: 50 mm USD fork / 835 ml SAE 7.5W
- OEM Fork: 50 mm USD fork
- OEM Fork oil grade: 835 ml SAE 7.5W
Drive chain
