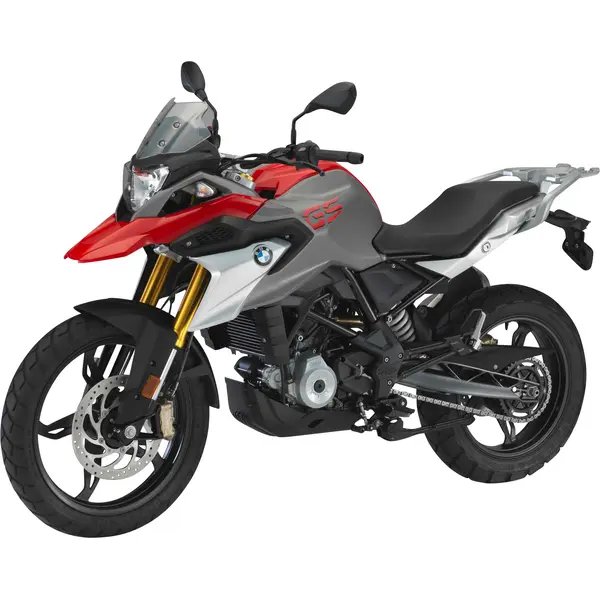

BMW G 310 GS (EURO 4) (2017–2020) — Specs
Identity
Manufacturer: BMW
Model: G 310 GS (EURO 4)
Category: Motorcycle
Type: Motorcycle
Years: 2017 → 2020
Engine
Displacement (cc): 313
Cylinders: 1
Power (hp): 34
Power (kW): 25
Torque (Nm): 28
Dimensions
Overall length: 2075 mm
Overall width: 880 mm
Overall height: 1350 mm
Wheelbase: 1420 mm
Ground clearance: 220 mm
Weight (kg): 170
Seat height (mm): 835
Tank (L): 11
Tires
Front tire: 110/80 R19
Rear tire: 150/70 R17
Front pressure (bar): 1.7
Rear pressure (bar): 1.9
Drivetrain
Drive chain: 520 chain
Sprockets (front / rear): 16 / 40
Ignition
Spark plug: NGK LMAR9D-J
Plug gap: 1.2 ± 0.1 mm
Fluids & Filters
Engine oil: SAE15W-50, API SJ
Engine oil (with filter, L): 1.65
Oil filter: Hiflofiltro HF184
Air filter: Hiflofiltro HFA7913
Brake fluid: DOT 4
Fuel consumption
Manufacturer / WMTC: 3.3 L/100 km
Real-world range: ~333 km on a full tank (11.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 12000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 12,000 km. Valve clearance — intake cold 0.11-0.20 mm, exhaust cold 0.26-0.35 mm. Engine oil: oil grade SAE15W-50, API SJ, 1.65 L with filter change. Spark plug: NGK LMAR9D-J (gap 1.2 ± 0.1 mm). Brake fluid: DOT 4. Chain: chain, sprockets 16/40 teeth. Tire pressure: front 1.7 bar, rear 1.9 bar (cold). Tire size: front 110/80 R19, rear 150/70 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 5W-40, 1.7 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-50)
- Premium Motul 7100
- Premium Motul 5100
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T
- Standard Elf Moto 4 Tech
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF184
- Premium Hiflofiltro HF184
- Premium K&N KN-184
Air filter
Spec: Hiflofiltro HFA7913
- Standard Hiflofiltro HFA7913
Spark plug
Spec: NGK CR8EH-9, gap 0.8-0.9 mm
- OEM NGK CR8EH-9
- Premium NGK CR8EHIX-9
- Standard NGK CR8EH-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA380HH)
- Premium EBC FA380HH
- Standard EBC FA380 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Drive chain
Spec: chain | Sprockets 16/40 teeth
- OEM OEM chain (pitch 520 (or 428 for some commuter 250s))
Front tire
Spec: 110/80 R19, 1.7 bar
- OEM OEM 110/80 R19
Rear tire
Spec: 150/70 R17, 1.9 bar
- OEM OEM 150/70 R17
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- OEM OEM battery: Exide ETZ7-BS (12V 6Ah)
- Premium Exide ETZ7-BS (12V 6Ah)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 12 000 km
- OEM Intake clearance: cold 0.11-0.20 mm
- OEM Exhaust clearance: cold 0.26-0.35 mm
Suspension
Spec: 41 mm USD fork / 430 ml SAE 7.5W
- OEM Fork: 41 mm USD fork
- OEM Fork oil grade: 430 ml SAE 7.5W
