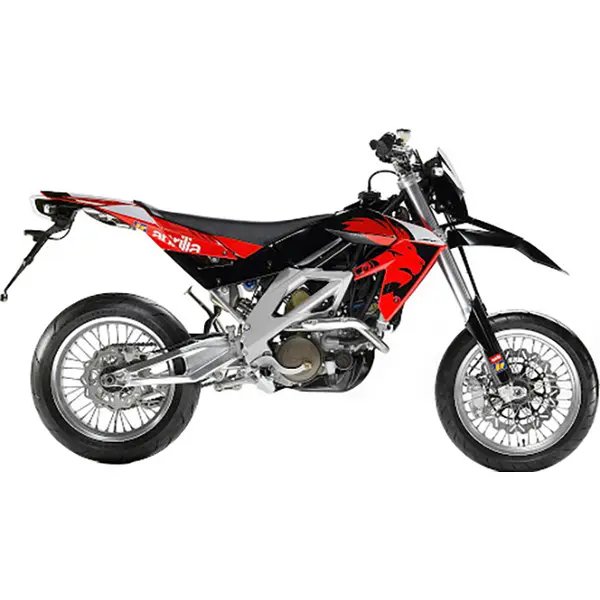

Aprilia SXV 550 SUPERMOTO (2006) — Specs
Identity
Manufacturer: Aprilia
Model: SXV 550 SUPERMOTO
Category: Motorcycle
Type: Motorcycle
Years: 2006 →
Engine
Displacement (cc): 553
Cylinders: 2
Power (hp): 65
Power (kW): 48
Dimensions
Overall length: 2150 mm
Overall width: 810 mm
Overall height: 1180 mm
Wheelbase: 1450 mm
Ground clearance: 155 mm
Weight (kg): 123
Tank (L): 7.8
Tires
Front tire: 120/70 R17
Rear tire: 150/60 R17
Front pressure (bar): 1.8
Rear pressure (bar): 2
Ignition
Spark plug: NGK CR8EB
Plug gap: 0.7-0.8 mm
Fluids & Filters
Engine oil: SAE10W-60
Engine oil (without filter, L): 1.3
Oil filter: OEM oil filter
Air filter: OEM air filter
Coolant (L): 1.1
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~162 km on a full tank (7.8 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.07-0.12 mm, exhaust cold 0.17-0.22 mm. Engine oil: oil grade SAE10W-60, 1.3 L without filter change. Spark plug: NGK CR8EB (gap 0.7-0.8 mm). Brake fluid: DOT 4. Coolant capacity: 1.1 L. Tire pressure: front 1.8 bar, rear 2 bar (cold). Tire size: front 120/70 R17, rear 150/60 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-60, 1.3 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-60)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Air filter
Spark plug
Spec: NGK CR8EB, gap 0.7-0.8 mm
- OEM NGK CR8EB
- Premium NGK CR8EBIX
- Standard NGK CR8EB
Front brake pads
Spec: EBC FA115
- Premium EBC FA115
Rear brake pads
Spec: EBC FA115
- Premium EBC FA115
Front tire
Spec: 120/70 R17, 1.8 bar
- OEM OEM 120/70 R17
Rear tire
Spec: 150/60 R17, 2.0 bar
- OEM OEM 150/60 R17
Battery
- Premium Yuasa YTX12-BS or YTZ10S (typical 500-750cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.10 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.07-0.12 mm
- OEM Exhaust clearance: cold 0.17-0.22 mm
Suspension
Spec: 48 mm USD fork / SAE 10W
- OEM Fork: 48 mm USD fork
- OEM Fork oil grade: SAE 10W
Drive chain
