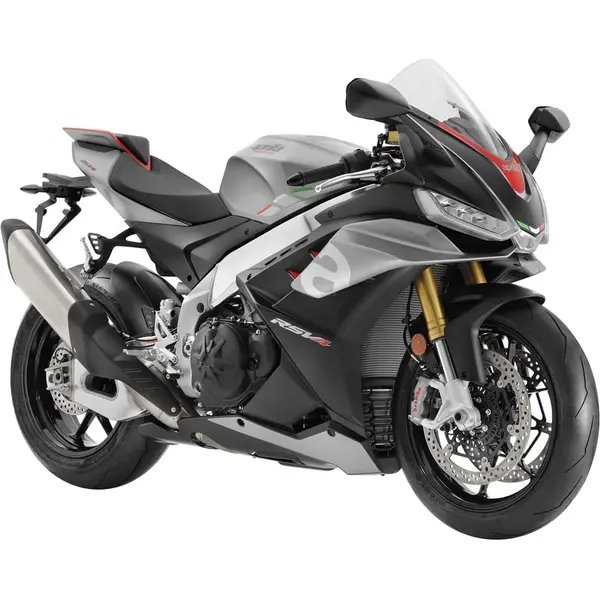

Aprilia RSV4/FACTORY 1100 (EURO 5) (2021–2024) — Specs
Identity
Manufacturer: Aprilia
Model: RSV4/FACTORY 1100 (EURO 5)
Category: Sport
Type: Motorcycle
Years: 2021 → 2024
Engine
Displacement (cc): 1099
Cylinders: 4
Power (hp): 217
Power (kW): 159
Torque (Nm): 125
Dimensions
Overall length: 2070 mm
Overall width: 720 mm
Overall height: 1135 mm
Wheelbase: 1445 mm
Ground clearance: 130 mm
Weight (kg): 202
Seat height (mm): 850
Tank (L): 17.9
Tires
Front tire: 120/70 ZR17
Rear tire: 200/55 ZR17
Front pressure (bar): 2.3
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 530 chain, 110 links
Sprockets (front / rear): 16 / 41
Ignition
Spark plug: NGK MR9DI-7
Plug gap: 0.7 mm
Fluids & Filters
Engine oil (with filter, L): 4.1
Oil filter: Hiflofiltro HF138
Air filter: Hiflofiltro HFA6101
Coolant (L): 2.7
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~298 km on a full tank (17.9 L)
Service
Battery: YTX9-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 20000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 20,000 km. Valve clearance — intake cold 0.10-0.15 mm, exhaust cold 0.20-0.25 mm. Engine oil: 4.1 L with filter change. Spark plug: NGK MR9DI-7. Brake fluid: DOT 4. Coolant capacity: 2.7 L. Chain: 110 links, sprockets 16/41 teeth. Tire pressure: front 2.3 bar, rear 2.5 bar (cold). Tire size: front 120/70 ZR17, rear 200/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-50, 3.7 L (with filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF138
- Premium Hiflofiltro HF138
- Premium K&N KN-138
Air filter
Spec: Hiflofiltro HFA6101
- Standard Hiflofiltro HFA6101
Spark plug
Spec: NGK LMAR9AI-9, gap 0.7-0.8 mm
- OEM NGK LMAR9AI-9
- Premium NGK LMAR9AI-9
- Standard NGK LMAR9AI-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA294HH)
- Premium EBC FA294HH
- Standard EBC FA294 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA266HH)
- Premium EBC FA266HH
- Standard EBC FA266 (organic)
Drive chain
Spec: 110 links | Sprockets 16/41 teeth / 110 links
Front sprocket
Spec: 16 teeth
Rear sprocket
Spec: 41 teeth
Front tire
Spec: 120/70 ZR17, 2.3 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 200/55 ZR17, 2.5 bar
- OEM OEM 200/55 ZR17
Battery
Spec: OEM battery: Yuasa YTX9-BS
- OEM OEM battery: Yuasa YTZ10S
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.70 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 20 000 km
- OEM Intake clearance: cold 0.10-0.15 mm
- OEM Exhaust clearance: cold 0.20-0.25 mm
Suspension
Spec: 43 mm USD fork
- OEM Fork: 43 mm USD fork
