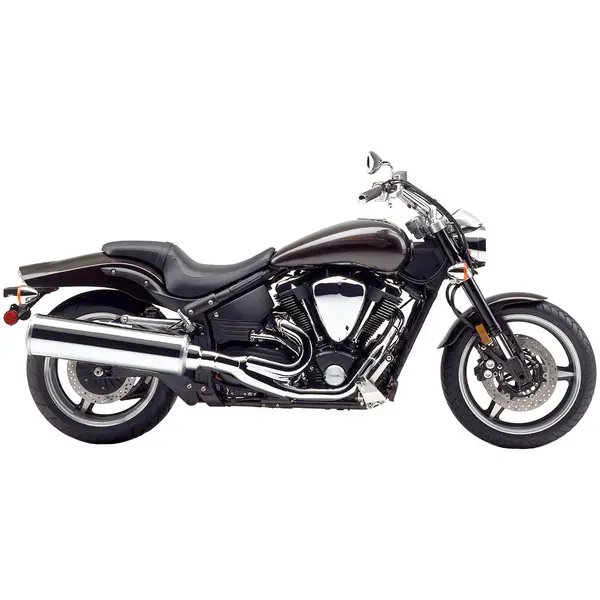

Yamaha XV 1700 ROAD STAR WARRIOR (2003–2005) — Specs
Identity
Manufacturer: Yamaha
Model: XV 1700 ROAD STAR WARRIOR
Category: Motorcycle
Type: Motorcycle
Years: 2003 → 2005
Engine
Displacement (cc): 1670
Cylinders: 2
Power (hp): 84
Power (kW): 62
Torque (Nm): 134
Dimensions
Overall length: 2380 mm
Overall width: 920 mm
Overall height: 1340 mm
Wheelbase: 1580 mm
Ground clearance: 140 mm
Weight (kg): 275
Seat height (mm): 725
Tank (L): 15
Tires
Front tire: 130/90-16
Rear tire: 170/80-15
Front pressure (bar): 2.5
Rear pressure (bar): 2.5
Drivetrain
Final drive: Toothed belt
Ignition
Spark plug: NGK DPR7EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE
Engine oil (with filter, L): 4.1
Engine oil (without filter, L): 3.7
Oil filter: Hiflofiltro HF303
Air filter: OEM air filter
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~250 km on a full tank (15.0 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.0-0.04 mm, exhaust cold 0.0-0.04 mm. Engine oil: oil grade SAE10W-40, API SE, 4.1 L with filter change, 3.7 L without filter change. Spark plug: NGK DPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Chain: toothed belt. Tire pressure: front 2.5 bar, rear 2.5 bar (cold). Tire size: front 130/90-16, rear 170/80-15. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE, 4.1 L (with filter), 3.7 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF303
- Premium Hiflofiltro HF303
- Premium K&N KN-303
Air filter
Spark plug
Spec: NGK DPR7EA-9, gap 0.9 mm
- OEM NGK DPR7EA-9
- Premium NGK DPR7EIX-9
- Standard NGK DPR7EA-9
Front brake pads
Spec: EBC FA252HH
- Premium EBC FA252HH
Rear brake pads
Spec: EBC FA252HH
- Premium EBC FA252HH
Front tire
Spec: 130/90-16, 2.5 bar
- OEM OEM 130/90-16
Rear tire
Spec: 170/80-15, 2.5 bar
- OEM OEM 170/80-15
Battery
- Premium Yuasa YTX20HL-BS (typical 1300cc+ cruiser/tourer)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.0-0.04 mm
- OEM Exhaust clearance: cold 0.0-0.04 mm
Suspension
Spec: 41 mm USD fork / 476 ml SAE 10W
- OEM Fork: 41 mm USD fork
- OEM Fork oil grade: 476 ml SAE 10W
Drive chain
