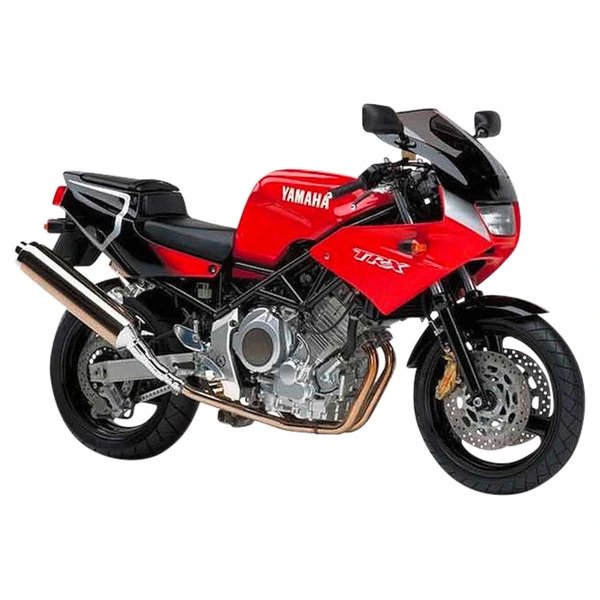

Yamaha TRX 850 (1996–1999) — Specs
Identity
Manufacturer: Yamaha
Model: TRX 850
Category: Motorcycle
Type: Motorcycle
Years: 1996 → 1999
Engine
Displacement (cc): 849
Cylinders: 2
Power (hp): 83
Power (kW): 61
Torque (Nm): 79
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 209
Seat height (mm): 785
Tank (L): 18
Tires
Front pressure (bar): 2.3
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 525 chain, 110 links
Sprockets (front / rear): 17 / 39
Ignition
Spark plug: NGK DPR8EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SE
Engine oil (with filter, L): 3.6
Engine oil (without filter, L): 3.5
Oil filter: Hiflofiltro HF145
Air filter: Hiflofiltro HFA4921
Coolant (L): 1.7
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~327 km on a full tank (18.0 L)
Service
Battery: YTX12-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.15-0.20 mm, exhaust cold 0.25-0.30 mm. Engine oil: oil grade SAE10W-40, API SE, 3.6 L with filter change, 3.5 L without filter change. Spark plug: NGK DPR8EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.7 L. Chain: 110 links, sprockets 17/39 teeth. Tire pressure: front 2.3 bar, rear 2.5 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SE, 3.6 L (with filter), 3.5 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF145
- Premium Hiflofiltro HF145
- Premium K&N KN-145
Air filter
Spec: Hiflofiltro HFA4921
- Standard Hiflofiltro HFA4921
Spark plug
Spec: NGK DPR8EA-9, gap 0.9 mm
- OEM NGK DPR8EA-9
- Premium NGK DPR8EIX-9
- Standard NGK DPR8EA-9
Front brake pads
Spec: EBC FA123HH
- Premium EBC FA123HH
Rear brake pads
Spec: EBC FA123HH
- Premium EBC FA123HH
Drive chain
Spec: 110 links | Sprockets 17/39 teeth / 110 links
Front tire
Spec: 2.3 bar
Rear tire
Spec: 2.5 bar
Battery
Spec: OEM battery: Yuasa YTX12-BS
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.70 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.15-0.20 mm
- OEM Exhaust clearance: cold 0.25-0.30 mm
Suspension
Spec: 41 mm telescopic fork / 485 ml SAE 10W
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 485 ml SAE 10W
