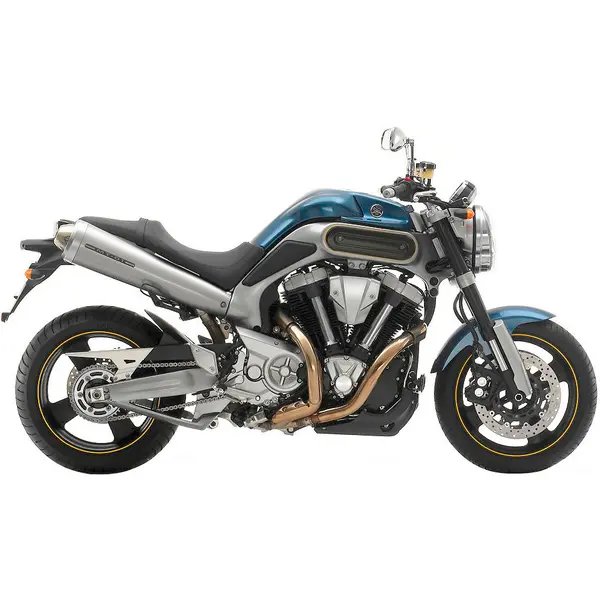

Yamaha MT-01 (2005–2006) — Specs

Identity

Manufacturer: Yamaha

Model: MT-01

Category: Naked

Type: Motorcycle

Years: 2005 → 2006

Engine

Displacement (cc): 1670

Cylinders: 2

Power (hp): 90

Power (kW): 66

Torque (Nm): 152

Dimensions

Overall length: 2090 mm

Overall width: 790 mm

Overall height: 1085 mm

Wheelbase: 1430 mm

Ground clearance: 145 mm

Weight (kg): 260

Seat height (mm): 825

Tank (L): 15

Tires

Front tire: 120/70 ZR17

Rear tire: 190/50 ZR17

Front pressure (bar): 2.5

Rear pressure (bar): 2.9

Drivetrain

Drive chain: 530 chain, 114 links

Sprockets (front / rear): 17 / 39

Ignition

Spark plug: NGK DPR7EA-9

Plug gap: 0.9 mm

Fluids & Filters

Engine oil: SAE20W-40, API SE

Engine oil (with filter, L): 4.1

Engine oil (without filter, L): 3.7

Oil filter: Hiflofiltro HF303

Air filter: OEM air filter

Brake fluid: DOT 4

Fuel consumption

Estimated range: ~250 km on a full tank (15.0 L)

Service

Battery: OEM battery specification

Service interval (km): 10000

Service interval (months): 12

Valve check (km): 24000

Parts and consumables for this motorcycle

Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.

Service notes

Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.00-0.04 mm, exhaust cold 0.00-0.04 mm. Engine oil: oil grade SAE20W-40, API SE, 4.1 L with filter change, 3.7 L without filter change. Spark plug: NGK DPR7EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Chain: 114 links, sprockets 17/39 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 190/50 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.

OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.

Engine oil

Spec: SAE20W-40, API SE, 4.1 L (with filter), 3.7 L (without filter)

OEM OEM recommended engine oil (SAE 20W-40)
Premium Motul 7100 4T (100% Synthetic, Ester)
Premium Motul 5100 4T Technosynthese (Semi-Synthetic)

Which Motul for this bike?

	Motul 7100 4T ✓	Motul 5100 4T
Product	Motul 7100 4T — 100% fully synthetic	Motul 5100 4T — semi-synthetic
Best for	Sport, Naked, Adventure (600cc+), track	Standard, Cruiser, Scooter, daily use
RPM protection	Excellent — ester base, stable under load	Good — for normal riding conditions

Standard Repsol Moto Racing 4T (Synthetic)
Standard Elf Moto 4 Tech (Semi-Synthetic)

Fully Synthetic vs Semi-Synthetic

	Fully Synthetic	Semi-Synthetic
Base oil	100% chemical synthesis (ester or PAO)	Mineral oil + synthetic additives
Heat resistance	Excellent — stable at extreme heat & RPM	Good — suitable for normal temperatures
Cold start	Better — reaches engine faster when cold	Good — adequate for normal climates
Change interval	Longer (up to 10,000 km)	Shorter (5,000–7,000 km typical)
Price	Higher	Lower

Oil filter

Spec: Hiflofiltro HF303

Premium Hiflofiltro HF303
Premium K&N KN-303

Air filter

Spark plug

Spec: NGK DPR7EA-9, gap 0.9 mm

OEM NGK DPR7EA-9
Premium NGK DPR7EIX-9
Standard NGK DPR7EA-9

Front brake pads

Spec: EBC FA380HH

Premium EBC FA380HH

Rear brake pads

Spec: EBC FA380HH

Premium EBC FA380HH

Drive chain

Spec: 114 links | Sprockets 17/39 teeth / 114 links

Front tire

Spec: 120/70 ZR17, 2.5 bar

OEM OEM front: 120/70 ZR17

Rear tire

Spec: 190/50 ZR17, 2.9 bar

OEM OEM 190/50 ZR17

Battery

Premium Yuasa YTX20HL-BS (typical 1300cc+ cruiser/tourer)

Brake fluid

Spec: DOT 4

Standard TotalEnergies HBF4

Coolant

Service interval

Spec: 10 000 km / 12 months

OEM Engine oil + oil filter change
OEM Air filter inspection
OEM Spark plug check
OEM Brake fluid replacement: every 2 years

Valve check

Spec: 24 000 km

OEM Intake clearance: cold 0.00-0.04 mm
OEM Exhaust clearance: cold 0.00-0.04 mm

Suspension

Spec: 43 mm USD fork / 586 ml SAE 5W

OEM Fork: 43 mm USD fork
OEM Fork oil grade: 586 ml SAE 5W
