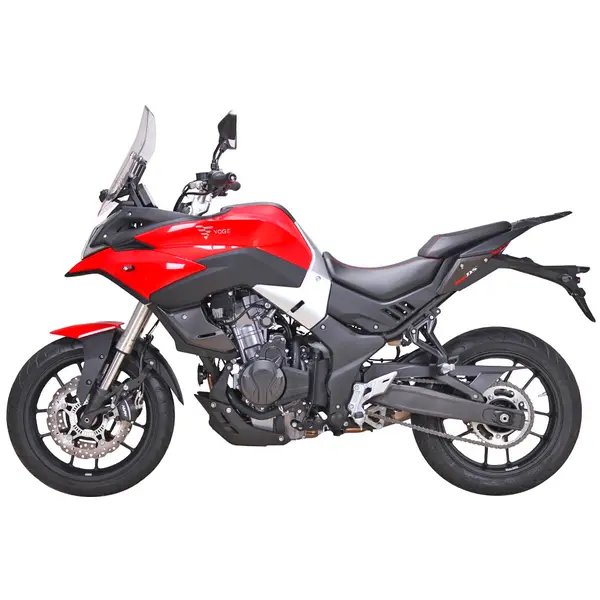

Voge 500 DS/DSX ADVENTURE (EURO 4/5) (2021) — Specs
Identity
Manufacturer: Voge
Model: 500 DS/DSX ADVENTURE (EURO 4/5)
Category: Adventure
Type: Motorcycle
Years: 2021 →
Engine
Displacement (cc): 471
Cylinders: 2
Power (hp): 44
Power (kW): 32
Torque (Nm): 47
Dimensions
Overall length: 2120 mm
Overall width: 830 mm
Overall height: 1320 mm
Wheelbase: 1450 mm
Ground clearance: 195 mm
Weight (kg): 205
Seat height (mm): 815
Tank (L): 16.5
Tires
Front tire: 110/80 R19
Rear tire: 140/80 R17
Front pressure (bar): 2.2
Rear pressure (bar): 2.5
Drivetrain
Drive chain: 520 chain, 118 links
Ignition
Spark plug: NGK CPR8EA-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: SAE10W-40, API SL
Engine oil (with filter, L): 2.7
Oil filter: Hiflofiltro HF682
Air filter: Hiflofiltro HFA1502
Coolant (L): 1.5
Brake fluid: DOT 4
Fuel consumption
Manufacturer / WMTC: 4.0 L/100 km
Real-world range: ~412 km on a full tank (16.5 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX7L-BS
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake 0.16 ± 0.03MM cold, exhaust 0.27 ± 0.03MM cold. Engine oil: oil grade SAE10W-40, API SL, 2.7 L with filter change. Spark plug: NGK CPR8EA-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.5 L. Chain: 118 links. Tire pressure: front 2.2 bar, rear 2.5 bar (cold). Tire size: front 110/80 R19, rear 140/80 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-40, 2.4 L (with filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF682
- Premium Hiflofiltro HF682
- Premium K&N KN-682
Air filter
Spec: Hiflofiltro HFA1502
- Standard Hiflofiltro HFA1502
Spark plug
Spec: NGK CR8E, gap 0.7-0.8 mm
- OEM NGK CR8E
- Premium NGK CR8EIX
- Standard NGK CR8E
Front brake pads
Spec: OEM front pad (EBC equivalent: FA181HH)
- Premium EBC FA181HH
- Standard EBC FA181 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA192HH)
- Premium EBC FA192HH
- Standard EBC FA192 (organic)
Drive chain
Spec: 118 links | 118 links
Front sprocket
Rear sprocket
Front tire
Spec: 110/80 R19, 2.2 bar
- OEM OEM 110/80 R19
Rear tire
Spec: 140/80 R17, 2.5 bar
- OEM OEM 140/80 R17
Battery
Spec: OEM battery: Yuasa YTX7L-BS
- OEM OEM battery: Yuasa YTX9-BS
- Premium Yuasa YTX9-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.50 L coolant capacity
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: 0.16 ± 0.03MM cold
- OEM Exhaust clearance: 0.27 ± 0.03MM cold
Suspension
Spec: 41 mm USD fork
- OEM Fork: 41 mm USD fork
