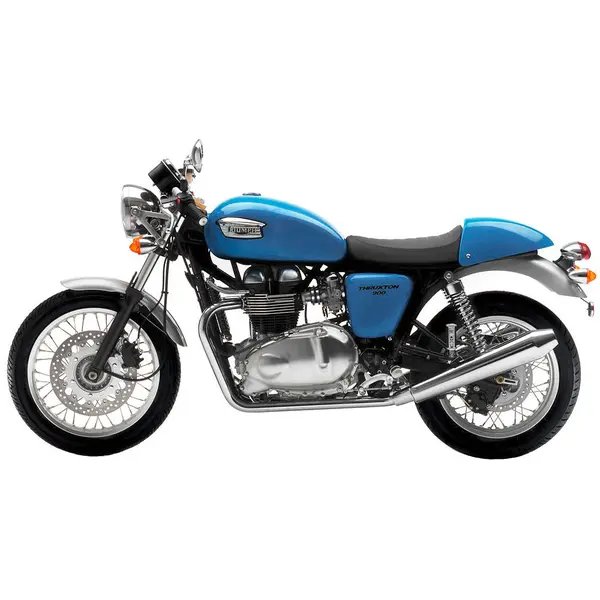

Triumph THRUXTON (2004–2007) — Specs
Identity
Manufacturer: Triumph
Model: THRUXTON
Category: Motorcycle
Type: Motorcycle
Years: 2004 → 2007
Engine
Displacement (cc): 865
Cylinders: 2
Power (hp): 70
Power (kW): 51
Torque (Nm): 70
Dimensions
Overall length: 2180 mm
Overall width: 830 mm
Overall height: 1200 mm
Wheelbase: 1480 mm
Ground clearance: 150 mm
Weight (kg): 230
Seat height (mm): 790
Tank (L): 16
Tires
Front pressure (bar): 2.3
Rear pressure (bar): 2.6
Drivetrain
Drive chain: 525 chain, 104 links
Sprockets (front / rear): 18 / 43
Ignition
Spark plug: NGK DPR8EA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: 10W-40, 15W-50, API SH
Engine oil (with filter, L): 3.8
Engine oil (without filter, L): 3.3
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA6509
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~290 km on a full tank (16.0 L)
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.15-0.20 mm, exhaust cold 0.25-0.30 mm. Engine oil: oil grade 10W-40, 15W-50, API SH, 3.8 L with filter change, 3.3 L without filter change. Spark plug: NGK DPR8EA-9 (gap 0.9 mm). Brake fluid: DOT 4. Chain: 104 links, sprockets 18/43 teeth. Tire pressure: front 2.3 bar, rear 2.6 bar (cold). Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 15W-50, API SH, 3.8 L (with filter), 3.3 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA6509
- Standard Hiflofiltro HFA6509
Spark plug
Spec: NGK DPR8EA-9, gap 0.9 mm
- OEM NGK DPR8EA-9
- Premium NGK DPR8EIX-9
- Standard NGK DPR8EA-9
Front brake pads
Spec: EBC FA142HH
- Premium EBC FA142HH
Rear brake pads
Spec: EBC FA142HH
- Premium EBC FA142HH
Drive chain
Spec: 104 links | Sprockets 18/43 teeth / 104 links
Front tire
Spec: 2.3 bar
Rear tire
Spec: 2.6 bar
Battery
- Premium Yuasa YTX14-BS or YTZ12S (typical 750-1000cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.15-0.20 mm
- OEM Exhaust clearance: cold 0.25-0.30 mm
Suspension
Spec: 41 mm telescopic fork / 484ML 10W dry
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: 484ML 10W dry
