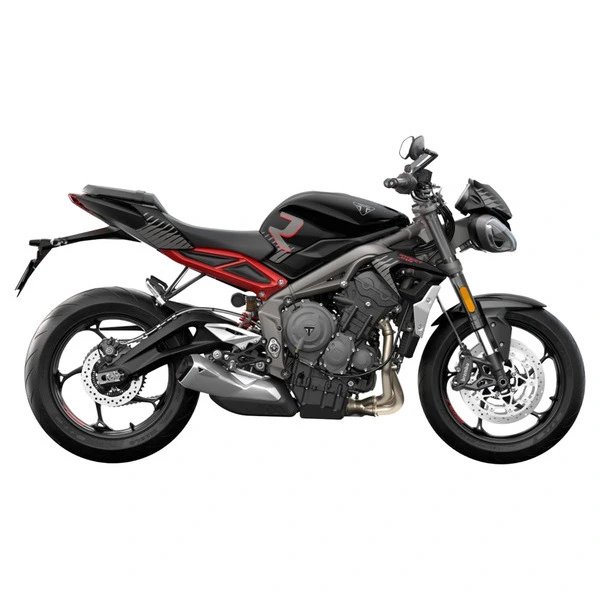

Triumph STREET TRIPLE 765 R/R LOW (EURO 5) (2021–2022) — Specs
Identity
Manufacturer: Triumph
Model: STREET TRIPLE 765 R/R LOW (EURO 5)
Category: Naked
Type: Motorcycle
Years: 2021 → 2022
Engine
Displacement (cc): 765
Cylinders: 3
Power (hp): 118
Power (kW): 87
Torque (Nm): 80
Dimensions
Overall length: 2055 mm
Overall width: 770 mm
Overall height: 1085 mm
Wheelbase: 1405 mm
Ground clearance: 158 mm
Weight (kg): 190
Tank (L): 17.4
Tires
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Front pressure (bar): 2.3
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 525 chain, 118 links
Sprockets (front / rear): 16 / 46
Ignition
Spark plug: NGK CR9EIA-9
Plug gap: 0.9 mm
Fluids & Filters
Engine oil: 10W-40, API SH
Engine oil (with filter, L): 3
Engine oil (without filter, L): 2.8
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA6506
Coolant (L): 2.1
Brake fluid: DOT 4
Fuel consumption
Estimated: 4.7 L/100 km
Estimated range: ~370 km on a full tank (17.4 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX9-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade 10W-40, API SH, 3 L with filter change, 2.8 L without filter change. Spark plug: NGK CR9EIA-9 (gap 0.9 mm). Brake fluid: DOT 4. Coolant capacity: 2.1 L. Chain: 118 links, sprockets 16/46 teeth. Tire pressure: front 2.3 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 180/55 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, API SH, 3.0 L (with filter), 2.8 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA6506
- Standard Hiflofiltro HFA6506
Spark plug
Spec: NGK CR9EIA-9, gap 0.9 mm
- OEM NGK CR9EIA-9
- Premium NGK CR9EIA-9
- Standard NGK CR9EIA-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA630HH)
- Premium EBC FA630HH
- Standard EBC FA630 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Drive chain
Spec: 118 links | Sprockets 16/46 teeth / 118 links
Front tire
Spec: 120/70 ZR17, 2.3 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 180/55 ZR17, 2.9 bar
- OEM OEM rear: 180/55 ZR17
Battery
Spec: OEM battery: Yuasa YTX9-BS
- Premium Yuasa YTZ10S
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.10 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 41 mm USD fork
- OEM Fork: 41 mm USD fork
