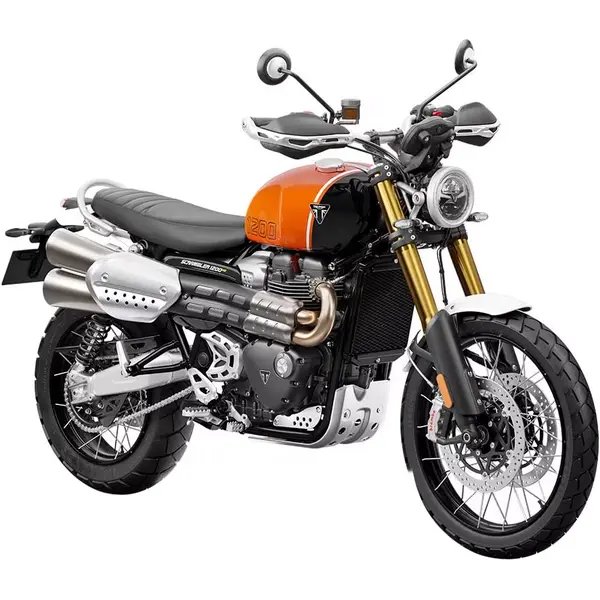

Triumph Scrambler 1200 XE (Euro 5+) (2024–2025) — Specs
Identity
Manufacturer: Triumph
Model: Scrambler 1200 XE (Euro 5+)
Category: Scrambler
Type: Motorcycle
Years: 2024 → 2025
Engine
Displacement (cc): 1200
Cylinders: 2
Power (hp): 90
Power (kW): 66
Torque (Nm): 110
Dimensions
Overall length: 2300 mm
Overall width: 905 mm
Overall height: 1245 mm
Wheelbase: 1520 mm
Ground clearance: 165 mm
Weight (kg): 230
Seat height (mm): 870
Tank (L): 15
Tires
Front tire: 90/90-21
Rear tire: 150/70 R17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 530 chain, 114 links
Sprockets (front / rear): 16 / 44
Ignition
Spark plug: NGK LMAR8A-9
Plug gap: 0.8-0.9 mm
Fluids & Filters
Engine oil: 10W-40, 10W-50, API SH
Engine oil (with filter, L): 3.4
Engine oil (without filter, L): 3.2
Oil filter: Hiflofiltro HF204
Air filter: Hiflofiltro HFA6507
Coolant (L): 1.9
Brake fluid: DOT 4
Fuel consumption
Estimated: 5.0 L/100 km
Estimated range: ~300 km on a full tank (15.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: OEM battery specification
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade 10W-40, 10W-50, API SH, 3.4 L with filter change, 3.2 L without filter change. Spark plug: NGK LMAR8A-9 (gap 0.8-0.9 mm). Brake fluid: DOT 4. Coolant capacity: 1.9 L. Chain: 114 links, sprockets 16/44 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 90/90-21, rear 150/70 R17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: 10W-40, 10W-50, API SH, 3.4 L (with filter), 3.2 L (without filter)
- OEM OEM recommended engine oil
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF204
- Premium Hiflofiltro HF204
- Premium K&N KN-204
Air filter
Spec: Hiflofiltro HFA6507
- Standard Hiflofiltro HFA6507
Spark plug
Spec: NGK LMAR8A-9, gap 0.8-0.9 mm
- OEM NGK LMAR8A-9
- Premium NGK LMAR8AIX-9
- Standard NGK LMAR8A-9
Front brake pads
Rear brake pads
Drive chain
Spec: 114 links | Sprockets 16/44 teeth / 114 links
Front tire
Spec: 90/90-21, 2.5 bar
- OEM OEM 90/90-21
Rear tire
Spec: 150/70 R17, 2.9 bar
- OEM OEM 150/70 R17
Battery
- Premium Yuasa YTX12-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.90 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 45 mm USD fork
- OEM Fork: 45 mm USD fork
