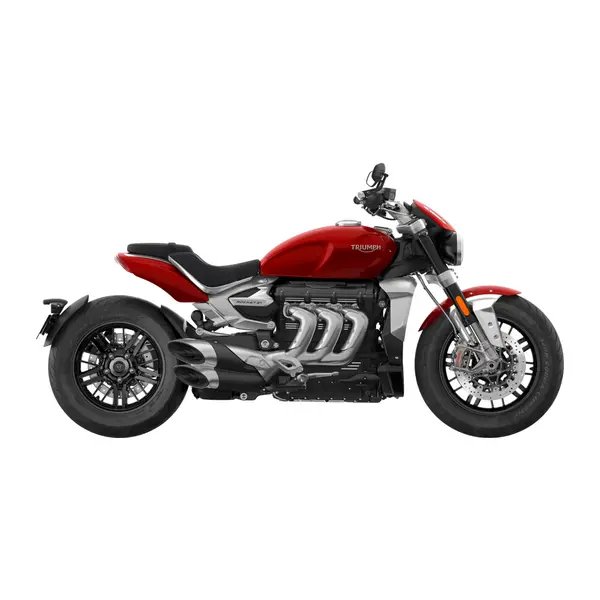

Triumph ROCKET 3 R (EURO 5) (2020–2023) — Specs
Identity
Manufacturer: Triumph
Model: ROCKET 3 R (EURO 5)
Category: Cruiser
Type: Motorcycle
Years: 2020 → 2023
Engine
Displacement (cc): 2458
Cylinders: 3
Power (hp): 167
Power (kW): 123
Torque (Nm): 221
Dimensions
Overall length: 2500 mm
Overall width: 925 mm
Overall height: 1170 mm
Wheelbase: 1700 mm
Ground clearance: 150 mm
Weight (kg): 291
Seat height (mm): 773
Tank (L): 18
Tires
Front tire: 150/80 R17
Rear tire: 240/50 R16
Front pressure (bar): 2.9
Rear pressure (bar): 2.9
Drivetrain
Final drive: Shaft drive
Ignition
Spark plug: NGK LMAR8A-9
Plug gap: 0.9 ± 0.1 mm
Fluids & Filters
Engine oil: SAE15W-50, API SH
Engine oil (with filter, L): 4.6
Engine oil (without filter, L): 4.4
Oil filter: Hiflofiltro HF191
Air filter: Hiflofiltro HFA6502
Coolant (L): 2.6
Brake fluid: DOT 4
Fuel consumption
Estimated: 6.8 L/100 km
Estimated range: ~264 km on a full tank (18.0 L)
Note: real-world ±15-30% depending on riding style
Service
Battery: YTX20HL-BS
Service interval (km): 10000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 10,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE15W-50, API SH, 4.6 L with filter change, 4.4 L without filter change. Spark plug: NGK LMAR8A-9 (gap 0.9 ± 0.1 mm). Brake fluid: DOT 4. Coolant capacity: 2.6 L. Drive: shaft drive. Tire pressure: front 2.9 bar, rear 2.9 bar (cold). Tire size: front 150/80 R17, rear 240/50 R16. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE 10W-40, 4.5 L (with filter)
- OEM OEM recommended engine oil (SAE 15W-50)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF191
- Premium Hiflofiltro HF191
- Premium K&N KN-191
Air filter
Spec: Hiflofiltro HFA6502
- Standard Hiflofiltro HFA6502
Spark plug
Spec: NGK LMAR9AI-9, gap 0.7-0.8 mm
- OEM NGK LMAR9AI-9
- Premium NGK LMAR9AI-9
- Standard NGK LMAR9AI-9
Front brake pads
Spec: OEM front pad (EBC equivalent: FA294HH)
- Premium EBC FA294HH
- Standard EBC FA294 (organic)
Rear brake pads
Spec: OEM rear pad (EBC equivalent: FA213HH)
- Premium EBC FA213HH
- Standard EBC FA213 (organic)
Front tire
Spec: 150/80 R17, 2.9 bar
- OEM OEM 150/80 R17
Rear tire
Spec: 240/50 R16, 2.9 bar
- OEM OEM 240/50 R16
Battery
Spec: OEM battery: Yuasa YTX20HL-BS
- Premium Yuasa YTX20L-BS
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 2.60 L coolant capacity
Service interval
Spec: 10 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 47 mm USD fork
- OEM Fork: 47 mm USD fork
Drive chain
