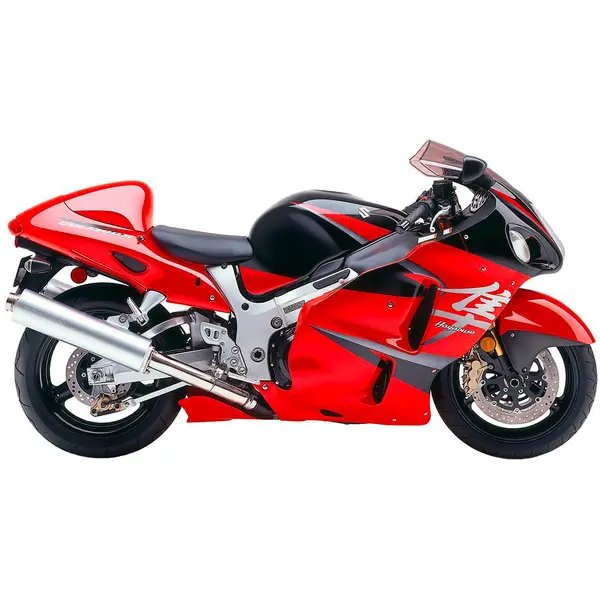

Suzuki GSX 1300 R HAYABUSA (2004–2007) — Specs
Identity
Manufacturer: Suzuki
Model: GSX 1300 R HAYABUSA
Category: Motorcycle
Type: Motorcycle
Years: 2004 → 2007
Engine
Displacement (cc): 1299
Cylinders: 4
Power (hp): 175
Power (kW): 129
Torque (Nm): 150
Dimensions
Overall length: 2380 mm
Overall width: 920 mm
Overall height: 1340 mm
Wheelbase: 1580 mm
Ground clearance: 140 mm
Weight (kg): 248
Seat height (mm): 805
Tank (L): 21
Tires
Front tire: 120/70 ZR17
Rear tire: 190/50 ZR17
Front pressure (bar): 2.9
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 530 chain, 112 links
Sprockets (front / rear): 17 / 40
Ignition
Spark plug: NGK CR9E
Plug gap: 0.7 mm
Fluids & Filters
Engine oil: SAE10W-40, API SF
Engine oil (with filter, L): 3.5
Engine oil (without filter, L): 3.3
Oil filter: Hiflofiltro HF138
Air filter: Hiflofiltro HFA3911
Coolant (L): 3
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~350 km on a full tank (21.0 L)
Service
Battery: YTX12-BS
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.20 mm, exhaust cold 0.20-0.30 mm. Engine oil: oil grade SAE10W-40, API SF, 3.5 L with filter change, 3.3 L without filter change. Spark plug: NGK CR9E (gap 0.7 mm). Brake fluid: DOT 4. Coolant capacity: 3 L. Chain: 112 links, sprockets 17/40 teeth. Tire pressure: front 2.9 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 190/50 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SF, 3.5 L (with filter), 3.3 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Premium Liqui Moly Motorbike 4T
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
- Standard TotalEnergies Quartz Moto 4T
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF138
- Premium Hiflofiltro HF138
- Premium K&N KN-138
Air filter
Spec: Hiflofiltro HFA3911
- Standard Hiflofiltro HFA3911
Spark plug
Spec: NGK CR9E, gap 0.7 mm
- OEM NGK CR9E
- Premium NGK CR9EIX
- Standard NGK CR9E
Front brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Rear brake pads
Spec: EBC FA188HH
- Premium EBC FA188HH
Drive chain
Spec: 112 links | Sprockets 17/40 teeth / 112 links
Front sprocket
Spec: 17 teeth
Rear sprocket
Spec: 40 teeth
Front tire
Spec: 120/70 ZR17, 2.9 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 190/50 ZR17, 2.9 bar
- OEM OEM 190/50 ZR17
Battery
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 3.00 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.20 mm
- OEM Exhaust clearance: cold 0.20-0.30 mm
Suspension
Spec: 43 mm USD fork / 480 ml SAE 5W/10W
- OEM Fork: 43 mm USD fork
- OEM Fork oil grade: 480 ml SAE 5W/10W
