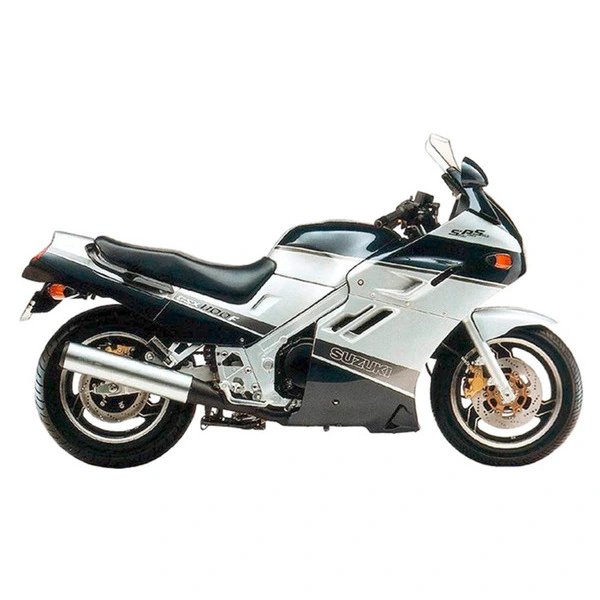

Suzuki GSX 1100 F (J-R) (1988–1994) — Specs
Identity
Manufacturer: Suzuki
Model: GSX 1100 F (J-R)
Category: Motorcycle
Type: Motorcycle
Years: 1988 → 1994
Engine
Displacement (cc): 1127
Cylinders: 4
Power (hp): 100
Power (kW): 74
Torque (Nm): 100
Dimensions
Overall length: 2240 mm
Overall width: 870 mm
Overall height: 1280 mm
Wheelbase: 1510 mm
Ground clearance: 150 mm
Weight (kg): 270
Seat height (mm): 795
Tank (L): 21
Tires
Front tire: 120/70 ZR17
Rear tire: 170/60 ZR17
Front pressure (bar): 2.5
Rear pressure (bar): 2.9
Drivetrain
Drive chain: 118GL./122 AB K-
Sprockets (front / rear): 15 / 52
Ignition
Spark plug: NGK JR9B
Plug gap: 0.6-0.7 mm
Fluids & Filters
Engine oil: SAE10W-40, API SF
Engine oil (with filter, L): 4.5
Engine oil (without filter, L): 4.3
Oil filter: Hiflofiltro HF138
Air filter: Hiflofiltro HFA3704
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~350 km on a full tank (21.0 L)
Service
Battery: OEM battery specification
Service interval (km): 6000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 6,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Valve clearance — intake cold 0.10-0.15 mm, exhaust cold 0.10-0.15 mm. Engine oil: oil grade SAE10W-40, API SF, 4.5 L with filter change, 4.3 L without filter change. Spark plug: NGK JR9B (gap 0.6-0.7 mm). Brake fluid: DOT 4. Chain: 118GL./122 AB K-, sprockets 15/52 teeth. Tire pressure: front 2.5 bar, rear 2.9 bar (cold). Tire size: front 120/70 ZR17, rear 170/60 ZR17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SF, 4.5 L (with filter), 4.3 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF138
- Premium Hiflofiltro HF138
- Premium K&N KN-138
Air filter
Spec: Hiflofiltro HFA3704
- Standard Hiflofiltro HFA3704
Spark plug
Spec: NGK JR9B, gap 0.6-0.7 mm
- OEM NGK JR9B
- Premium NGK DR9EIX
- Standard NGK JR9B
Front brake pads
Spec: EBC FA146HH
- Premium EBC FA146HH
Rear brake pads
Spec: EBC FA146HH
- Premium EBC FA146HH
Drive chain
Spec: 118GL./122 AB K- | Sprockets 15/52 teeth / 118GL./122 AB K-
Front tire
Spec: 120/70 ZR17, 2.5 bar
- OEM OEM front: 120/70 ZR17
Rear tire
Spec: 170/60 ZR17, 2.9 bar
- OEM OEM 170/60 ZR17
Battery
- Premium Yuasa YTZ14S or YTX14-BS (typical 1000-1300cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Service interval
Spec: 6 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
- OEM Intake clearance: cold 0.10-0.15 mm
- OEM Exhaust clearance: cold 0.10-0.15 mm
Suspension
Spec: 41 mm telescopic fork / J:478ML 10W/K-:406
- OEM Fork: 41 mm telescopic fork
- OEM Fork oil grade: J:478ML 10W/K-:406
