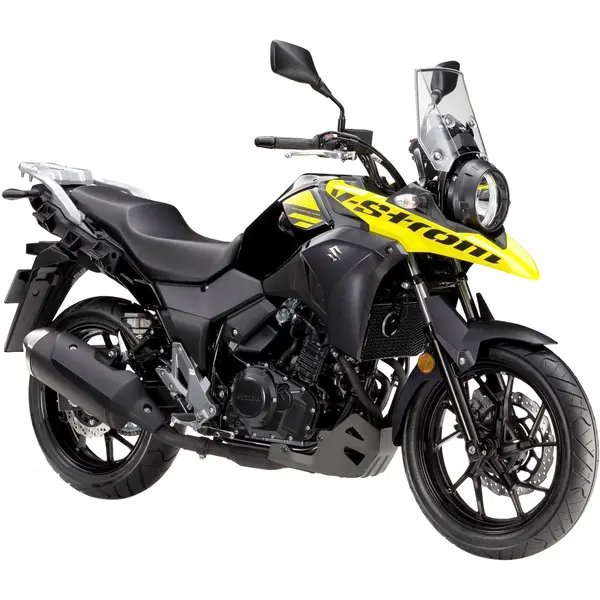

Suzuki DL 250 V-STROM (EURO 4) (2017–2020) — Specs
Identity
Manufacturer: Suzuki
Model: DL 250 V-STROM (EURO 4)
Category: Adventure
Type: Motorcycle
Years: 2017 → 2020
Engine
Displacement (cc): 248
Cylinders: 2
Power (hp): 25
Power (kW): 18
Torque (Nm): 24
Dimensions
Overall length: 2270 mm
Overall width: 920 mm
Overall height: 1430 mm
Wheelbase: 1545 mm
Ground clearance: 220 mm
Weight (kg): 188
Tank (L): 17.3
Tires
Front tire: 110/80-17
Rear tire: 140/70-17
Drivetrain
Drive chain: 428 chain, 116 links
Sprockets (front / rear): 14 / 47
Ignition
Spark plug: NGK CR7E
Fluids & Filters
Engine oil: SAE10W-40, API SG
Engine oil (with filter, L): 2.2
Engine oil (without filter, L): 2.1
Oil filter: Hiflofiltro HF138
Air filter: OEM air filter
Coolant (L): 1.35
Brake fluid: DOT 4
Fuel consumption
Estimated range: ~494 km on a full tank (17.3 L)
Service
Battery: OEM battery specification
Service interval (km): 12000
Service interval (months): 12
Valve check (km): 24000
Parts and consumables for this motorcycle
Data is gathered with care, but without guarantee. Always confirm critical information with your dealer or workshop.
Service notes
Service interval: every 12,000 km or 12 months, whichever comes first. Valve clearance check every 24,000 km. Engine oil: oil grade SAE10W-40, API SG, 2.2 L with filter change, 2.1 L without filter change. Spark plug: NGK CR7E. Brake fluid: DOT 4. Coolant capacity: 1.35 L. Chain: 116 links, sprockets 14/47 teeth. Tire size: front 110/80-17, rear 140/70-17. Always confirm critical values with the workshop manual or an authorised dealer.
OEM and quality aftermarket parts that fit this bike. Always confirm with your dealer before ordering.
Engine oil
Spec: SAE10W-40, API SG, 2.2 L (with filter), 2.1 L (without filter)
- OEM OEM recommended engine oil (SAE 10W-40)
- Premium Motul 7100 4T (100% Synthetic, Ester)
- Premium Motul 5100 4T Technosynthese (Semi-Synthetic)
Which Motul for this bike?
| Motul 7100 4T ✓ | Motul 5100 4T | |
|---|---|---|
| Product | Motul 7100 4T — 100% fully synthetic | Motul 5100 4T — semi-synthetic |
| Best for | Sport, Naked, Adventure (600cc+), track | Standard, Cruiser, Scooter, daily use |
| RPM protection | Excellent — ester base, stable under load | Good — for normal riding conditions |
- Standard Repsol Moto Racing 4T (Synthetic)
- Standard Elf Moto 4 Tech (Semi-Synthetic)
Fully Synthetic vs Semi-Synthetic
| Fully Synthetic | Semi-Synthetic | |
|---|---|---|
| Base oil | 100% chemical synthesis (ester or PAO) | Mineral oil + synthetic additives |
| Heat resistance | Excellent — stable at extreme heat & RPM | Good — suitable for normal temperatures |
| Cold start | Better — reaches engine faster when cold | Good — adequate for normal climates |
| Change interval | Longer (up to 10,000 km) | Shorter (5,000–7,000 km typical) |
| Price | Higher | Lower |
Oil filter
Spec: Hiflofiltro HF138
- Premium Hiflofiltro HF138
- Premium K&N KN-138
Air filter
Spark plug
Spec: NGK CR7E
- OEM NGK CR7E
- Premium NGK CR7EIX
- Standard NGK CR7E
Front brake pads
Spec: EBC FA226HH
- Premium EBC FA226HH
Rear brake pads
Spec: EBC FA226HH
- Premium EBC FA226HH
Drive chain
Spec: 116 links | Sprockets 14/47 teeth / 116 links
- OEM OEM chain (pitch 520 (or 428 for some commuter 250s))
Front tire
Spec: 110/80-17
- OEM OEM 110/80-17
Rear tire
Spec: 140/70-17
- OEM OEM 140/70-17
Battery
- Premium Yuasa YTX7L-BS or YTX7A-BS (typical 125-250cc)
Brake fluid
Spec: DOT 4
- Standard TotalEnergies HBF4
Coolant
Spec: 1.35 L coolant capacity
Service interval
Spec: 12 000 km / 12 months
- OEM Engine oil + oil filter change
- OEM Air filter inspection
- OEM Spark plug check
- OEM Brake fluid replacement: every 2 years
Valve check
Spec: 24 000 km
Suspension
Spec: 37 mm telescopic fork / 338 ml SAE 10W
- OEM Fork: 37 mm telescopic fork
- OEM Fork oil grade: 338 ml SAE 10W
